PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty

China PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty supplier
PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty supplier PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty supplier PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty supplier

Large Image :  PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL20

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Plastic Type: Plastic Polymer Formula Testing, Small Production Application: Plastic Pellets
Warranty: One Year Screw Diameter: 21.7mm
Screw & Barrel Material: W6Mo5Cr4V2 Motor: 5.5kw
Capacity: 2-15kg/h Color: Any Color Can Be Customzied

SJSL20 PLC Control Lab Twin Screw Extruder Laboratory Mini Extruder for Formula Testing



Nanjing Yongjie started to make corn starch, pla pellets, biodegradable plastic pellets since 2001,our twin screw extruders are widely used for enforcing modification, degradable master batch, anti-flame master batch etc also.



Characteristics of twin screw extruder

The screw arrangement are adopted “toy bricks” principle, which assembly according to different machine L/D, different feeding way, different barrel and screw combination, different screen changing and cutting way, different electrical control mode, etc. it meets the features of material and technological process. Give consideration to the plastic universality commonality and appropriability.



Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.



Details information of machine

No. Contents Unit Quantity Marks
1 High speed mixer set 1 5L
2 Twin screw extrusion system set 1
2.1 Feeding system set 1 0.25kw
2.2 SJ-20 Twin screw extruder set 1 5.5kw, 40:1
2.3 Vacuum venting system set 1 0.75kw
2.4 Water cycling system set 1 0.55kw
2.5 Manual screen changer set 1
3 Electric cabinet set 1
4 Water stand auxiliary system set 1
4.1 Die head set 1
4.2 Water trough set 1 1 M
4.3 Dryer set 1 0.26KW
4.4 Pelletizer set 1 0.75KW
5 Documents set 1

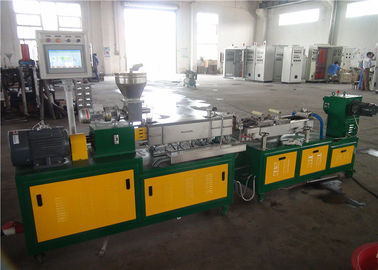

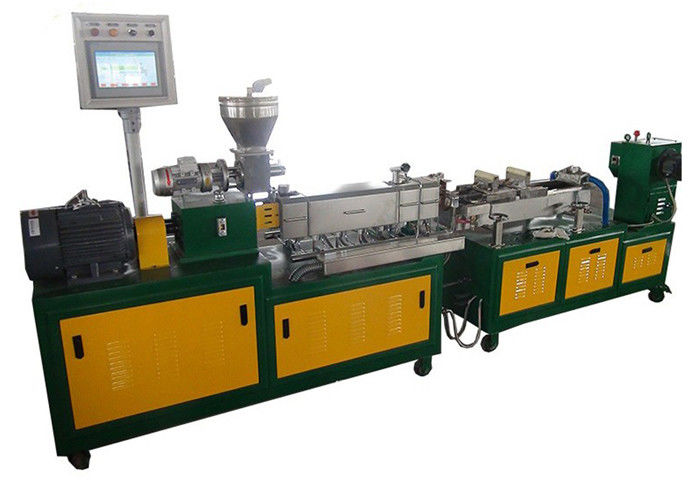

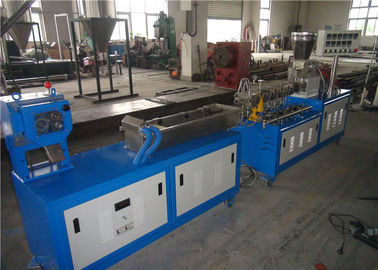

Photos of machine

PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty
PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty
PLC Control Mini Twin Screw Extruder , HDPE Extruder Machine One Year Warranty



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
