PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life

China PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life supplier
PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life supplier PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life supplier PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life supplier

Large Image :  PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: ZL180-180

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD60000-110,000/set
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Single-single Screw Extruder Application: Plastic Pellets
Warranty: One Year Screw Diameter: 180mm/180mm
Screw & Barrel Material: 38CrMoAlA Motor: 132/90kw
Cutting Type: Water Ring/air Coolinghot Cutting Capacity: 400-500kg/h

PE PP PVC film plastic recycling machine double stage extruder



Two Stage Extruder
ZL series, that’s two stage compounding extruder consisted of two parts. Mainly there are three types of two stage extruder combination:

1. Single screw main extruder machine-single screw submachine

2. Single screw main pelletizing machine-twin screw submachine

3. Twin screw main pelletizing machine-single screw submachine

The first two types are widely used for recycled plastic granulating.



And the third type for heat-sensitive material like PVC, POM, XLPE etc.

The twin screw extruder (SJSL-) at the first stage is to realize good shearing and compounding for material, and then the extrusion and pelletizing by YD single screw extruder (second stage). The new, scientific and advanced design and structure can avoid material decomposition caused by material overheating

Application of Twin-Single Screw Extruder

Carbon black master batch

PVC cable, PVC transparent bottle and blood transfusion tube materials

PE silicon hydride crosslink cable material, peroxide crosslink cable material

Wood- plastic blending material

Heat-sensitive polymeride.



Quick details of main machine



a. Main machine L/D: 28:1
b. Screw diameter: ¢180mm
c. The screw material: 38CrMoALA, nitrogen hardening. The hardness of the surface is HV
950-1050, layer depth: 0.5-0.7 mm;
d. The barrel material: 38CrMoALA, nitrogen hardening. , the hardness of the surface is HV
950-1050; layer depth: 0.5-0.7 mm;
e. The center height of the screw is 900mm. The screw elements are connected to the
reduction box by involute spline.
f. Barrel, heater and cooler:

Quick details of main machine

a. L/D=9:1, barrel length: ~1620mm

b. Screw diameter: ¢180mm

c. The screw material: 38CrMoALA, nitrogen hardening. The hardness of the surface is

HV 950-1050, deep layer: 0.5-0.7 mm;

d. The barrel material: 38CrMoALA, nitrogen hardening. The hardness of the surface is

HV 950-1050, deep layer: 0.5-0.7 mm;

e. The center height of the screw is 800mm. The screw elements are connected to

gearbox by involute spline.

f. the submachine motor power: 55 KW,(AC), adopted speed governed by YOLICO

inverter. Screw Output Speed 17-84rpm.

g. the submachine heating power: 35 KW, The heating zone can be divided into 4 zones.

Controlled by separately, cooled by blower, the top heating capacity is 500℃.

h. The submachine gear box adopts parallel tri-axial structure. The gear is made of

20CrNi2Mo, which had been treated by the cementation heat treatment process.

The hardness is HRC 60-63. Adopt Japan SKF bearing imported from Sweden.i.

Barrel cooled by air blowing way;

j. With hydraulic net exchanger system, operating easily, motor power: 1.5 KW.

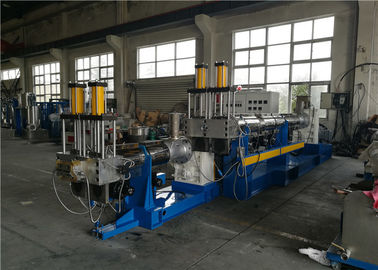

Photo of machine

PE PP PVC Film Plastic Recycling Machine Double Stage Extruder Long Span Life



Models of two stage machine

Model type Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Typical production capacity (kg/h)
ZL51-100 SJSL51 50.5 20-48 500-600 37/45 150-300
YD100 100 7-15 65-85 37
ZL60-120 SJSL60 59.5 20-44 400 37/45 200-350
YD120 120 7-15 65-90 37
ZL65-150 SJSL65 62.4 20-48 400-600 55/75 250-450
YD150 150 7-15 65-85 37/45
ZL75-180 SJSL75 71 20-44 400-600 75/90 400-650
YD180 180 7-15 65-90 45/55
ZL95-200 SJSL95 94 20-44 400-600 220/280 700-15000
YD200 200 7-15 65-85 75/90
