Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Plastic Type: | Pet Flake |
|---|---|---|---|
| Warranty: | One Year | Screw Diameter: | 93mm |
| Screw & Barrel Material: | W6Mo5Cr4V2 | Motor: | 250kw |
| Cutting Type: | Special Water Chute(underwater Cutting) | Capacity: | 500kg/h |

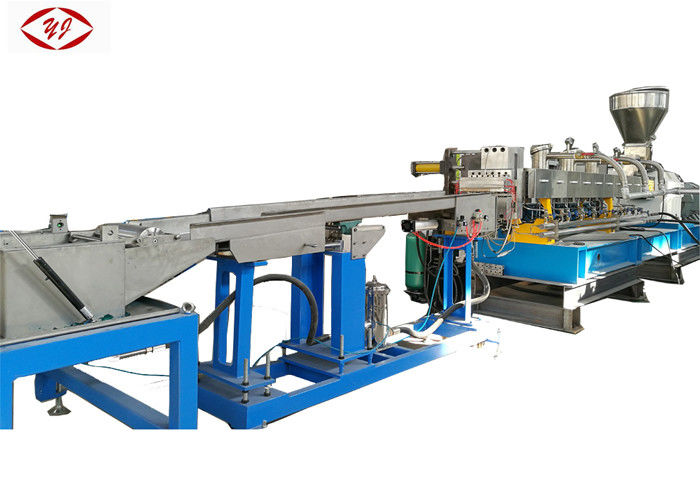

PET Flake Pelletizing Machine Speical Water Chute NO Material Strand Break
Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.
Our newly specially design water chute for pet flake, no waste of material strand, even the it's broke, it will still be washed to the pelletizer for cutting.
Water strand plastic pelletizing machine application
Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.
Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.
Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.
Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.
Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.
Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc
Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc
The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.
Scope of supply:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Screw feeding machine | set | 1 | 2.2kw |
| 2 | Twin screw extrusion system | set | 1 | |
| 2.1 | Feeding system | set | 1 | 18.5kw |
| 2.2 | SJ-95Twin screw extruder | set | 250 | kw,40:1 |
| 2.3 | Melt pump | set | 1 | 30kw |
| 2.4 | Vacuum venting system | set | 1 | 7.5kw |
| 2.5 | Water cycling system | set | 1 | 3kw |
| 2.6 | Automatic hydraulic screen changer | set | 1 | 2.2kw |
| 3 | Electric cabinet | set | 1 | PID |
| 4 | Water strand auxiliary system | set | 1 | |
| 4.1 | Die head | set | 1 | |
| 4.2 | Water trough | set | 1 | 2.5M |
| 4.3 | Pelletizer | set | 1 | 11KW |
| 4.4 | Centrifugal dehydrator | set | 1 | 11kw |
| 4.5 | Vibrator | set | 1 | 0.5kw |
| 4.6 | One stage air transmission system | set | 1 | 5.5kw |
| 5 | Spare parts | set | 1 | |
| 6 | Documents | set | 1 |
_______________________________________________________________________
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
