Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||Plastic Pelletizing|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
|Capacity:||2000-2500kg/h||Cutting Way:||Water Ring|
2500kg/h PE PP Filler Masterbatch Plastic Pelletizing Machine
Power:250/280/315kw option according to required output
Motor: AC motor, Siemens Beide
Barrel diameter: 71.8mm
Output:2000-2500kg/h according to different material, formula and technology of process etc.
Cutting way: our water ring & air cooling plastic pelletizing machine are widely used for PE PP filler masterbatch
Lead time:45 days after deposit
SJSL75D Water ring pelletizer system
1 Die head
Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.
2 Cutter with cover
1).Electromagnetic frequency control speed;
2). Motor power: 2.2kw.
3 Centrifugal dehydrator
1). Stainless steel main body, 15kw motor power.
4 Vibrating sieve
1).One sets of stainless steel vibrator sieve with two motors 0.375kw/set, 0.75kw in total, 3M long.
5 Product silo
1).It consists of stainless steel cyclone separator with brackets, 7.5KW fan, T-joint and sending pipes

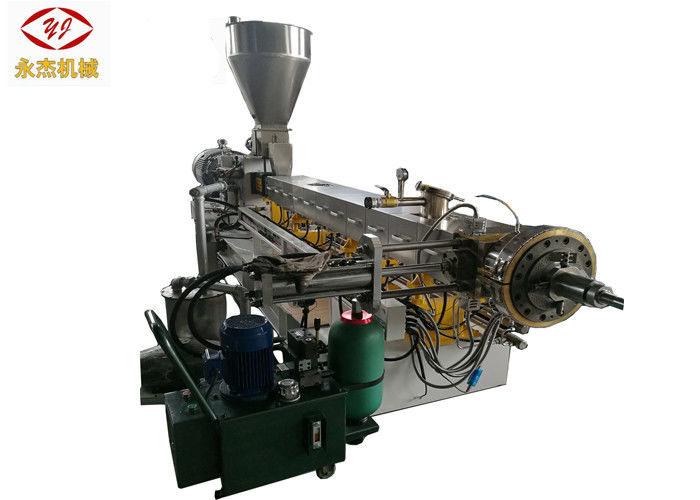

Photo of SJSL75D PE PP filler masterbatch plastic pelletizing machine (more models are available)
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
Package of our plastic pellet machine ( sea worthy film or wooden box according to requirements)
