Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | Recycled PET Flake Less Than 20mm |
|---|---|---|---|
| Moisture: | <1% | Overseas Engineers: | Available For Installation And Comissioning |
| Screw Diameter: | 62.4mm | Motor: | 90kw |
| Pelletizing System: | Water Strand | Capacity: | 200-300kg/h |

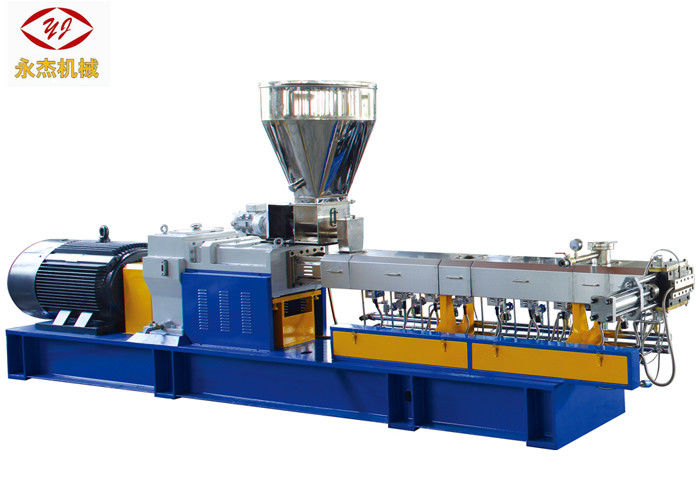

SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine
Nanjing Yongjie started to make pet plastic recycling machine since 2005, beside for pet pellets making machine, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.
Quick details
Power:90kw,others available
Screw diameter:62.4mm
Barrel diameter:63mm
L/D:40:1
Output:200-300kg(500-600kg by our SJSL95)
Cutting way: water bath cooling system
Warranty:one year
Lead time:45 days after deposit
Revolution speed:300rpm
Revolution ratio:5:1
Special design : first weak shear of the screw , second increased vacuum system, lower revolution speed of screw as way to maximum decrease the loss of IV of pet
SJSL65 Water Tank Auxiliary Machine
Die head
1).Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.
2). Hole: 15-∮3.8.
Water tank
1).Width=340mm, depth=200mm,length: 4000mm;
2).Three rubber roll brackets.
Dryer
1). Power: 2.2kw;
2). Made of stainless steel.
Pelletizer
1). Power: 4kw, inverter speed regulation 0-1480rpm;
2). Capacity: 300kg/h;
3). Pineapple cutting way;
4). Air-actuated granulating.

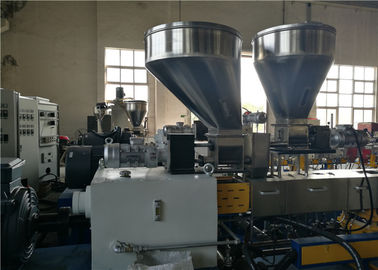

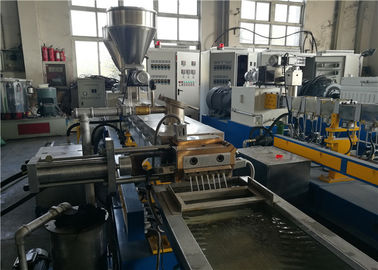

Photo of SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
Main advantages of our recycled PET flake granulating machine
1. Lower IV loss due to good screw array and wear shear of it
2. Clean and white color
