Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | Plastic Pellets |
|---|---|---|---|
| Warranty: | One Year | Overseas Engineers: | Available For Installation And Comissioning |
| Screw Diameter: | 50.5mm | Motor: | 45/55kw |
| Capacity: | 100-150kg/h | L/D: | 40:1 |

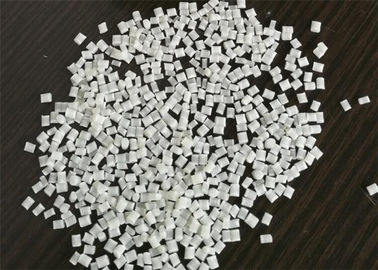

100-150kg/h Engineering Plastic PA Nylon Extruder Plastic Pelletizing Machine
Quick details
Power:45/55w A/B/C/D type available
Screw diameter:50.5mm
Barrel diameter: 51mm
L/D:40:1 for engineering plastic
Output:100-150kg/h according to different material, formula and technology of process etc.
Cutting way: water strand for engineering plastic
Warranty:one year
Lead time:45 days after deposit
Engineering plastic mateial includes PA, ABS, PC, PMMA, POM, PBT, PET etc
Scope of supply
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 0.75kw |
| 1.2 | SJ-51Twin screw extruder | set | 1 | 45kw, 40:1 |
| 1.3 | Vacuum venting system | set | 1 | 1.5kw |
| 1.4 | Water cycling system | set | 1 | 0.55kw |
| 1.5 | Automatic screen changer | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water-strand auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Water trough | set | 1 | 3M |
| 3.3 | Dryer | set | 1 | 1.5kw |
| 3.4 | Pelletizer | set | 1 | 300kg/h, 4kw |
| 4 | Documents | set | 1 |

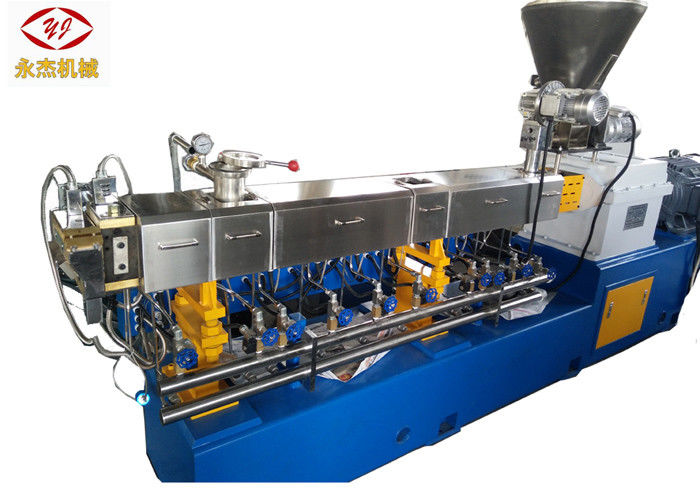

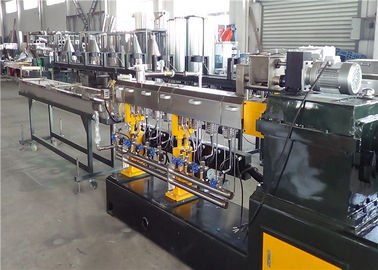

Photo of SJSL51 water strand plastic pellet machine for engineering plastic
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
