|Screw Design:||Single Screw Extruder||Application:||Recycling Pe Pp Plastic Film, Scrap Etc|
|Warranty:||One Year||Screw Diameter:||150mm|
|Motor:||75kw||Capacity:||200-300kg Per Hour|
|Material:||38CrMoALA||Central Height Of Screw:||900 Mm|
Recycling PE PP YD150 Single Screw Extruder Plastic Pelletizing Machine
Characteristic of single screw extruder
1. High precision gear box with ability of over loading, smooth transmitting, lower noise
2. Newly designed barrel and screw to ensure well-distributed of material in melting, low melt temperature and high production
3. The screw is made with standard and high precision during process. After treated by gases and nitride the barrel, it possesses strong wear- and corrosion- resisting. For special material, double metals are available for barrel etc.
4. The barrels cooled by lower with super mute working status, less maintenance
5. PID temperature is controlled by Japan temperature control meter with stable and accurate temperature.
6. Two type of die head design: manual and hydraulic type for easy changing and time saving.
7. ABB or other famous brand Inverter speed control for more stable and good performance of machine and easier operation
Working for plastic raw material dye, recycling plastic pellets from film, flake, scrap and engineering plastics, such as ABS, PC, POM, PP, PE, ABS/PC, PET etc.
Main technical parameter of YD-150 production line
d. Barrel material: 38CrMoALA;
World famous brand of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is Japanese joint venture ABB
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve adopt Denmark DANFOSS product.

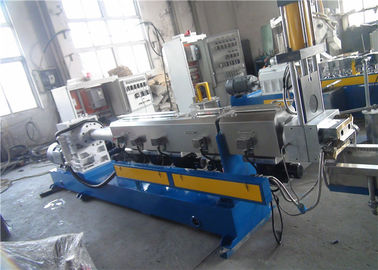

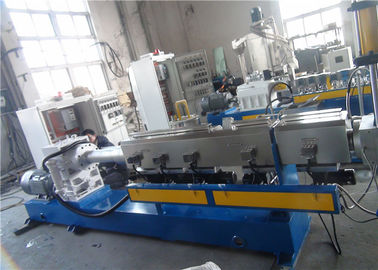

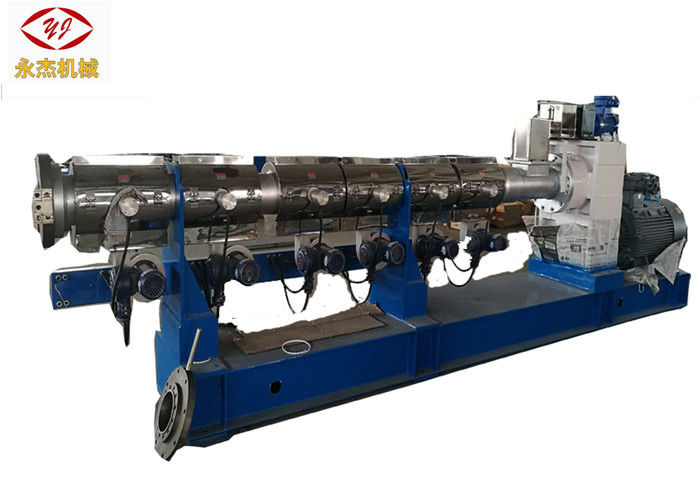

Photo of Recycling PE PP YD150 Single Screw Extruder Plastic Pelletizing Machine
Main technical data of various model of single screw extruder palstic pelleitizing machine
|Model type||Screw Diameter (mm)||Screw L/D||Main motor power(Kw)||screw speed n(r/min)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
Package of machine
1. Sea worthy of film or bubble film
2. Wooden box or frame according to customer's requirements
