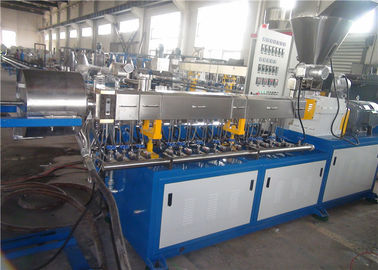

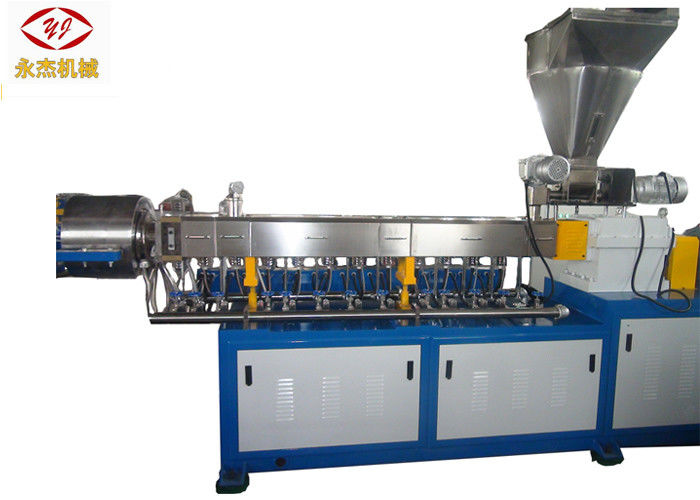

Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer

China Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer supplier
Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer supplier Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer supplier Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer supplier

Large Image :  Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL36

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Filler Masterbatch
Warranty: One Year Lead Time: 45 Days After Deposit
Barrel Diameter: 36mm Screw & Barrel Material: W6Mo5Cr4V2
Motor: 15kw Capacity: 50-80kg/h

Abs Masterbatch Making Machine Water Ring Pelletizer Twin Screw Extruder



Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Quick details of sjsl36 water ring pelletizer

Screw diameter:35.6mm

Screw material:W6Mo5Cr4V2

Barrel diameter:36mm

Barrel material:W6Mo5Cr4V2

Motor power:15kw

Motor brand:SIEMENS

L/D:44:1

Output:50-80kg/h

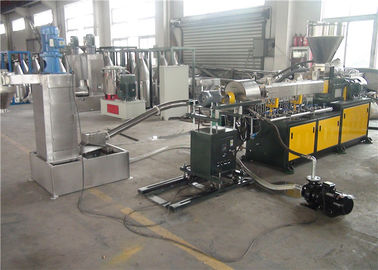

Scope of supply of sjsl36 water ring pelletizer

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 High speed mixer set 1 50L
1.2 Main feeding system set 1 0.75KW
1.3 SJ36 twin screw extruder set 1 18.5KW, 44:1
1.4 Vacuum venting system set 1 0.75KW
1.5 Water recycling system set 1 0.55KW
1.6 Hydraulic screen changer set 1 0.75KW
2 Electric cabinet set 1
3 Water-ring assembly system set 1
3.1 Die head set 1
3.2 Face cutter set 1 1.5KW
3.3 Water-ring cutting cover set 1
3.4 Centrifugal dehydrator set 1 2.2KW, 3KW
3.5 Production container set 1 3KW
4 Documents set 1



Main Technical Details of Plastic Pelletizing Machine Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

Automatic Water Ring Pelletizer ABS Extruder Machine With 50L High Speed Mixer
