Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line

China Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line supplier
Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line supplier Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line supplier Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line supplier

Large Image :  Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL75A

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: PP PE With 85% Caco3
Warranty: One Year Lead Time: 45 Days After Deposit
L/D: 48:1 Or 52:1 Screw & Barrel Material: W6Mo5Cr4V2
Motor: 110kw Capacity: 500-800kg/h

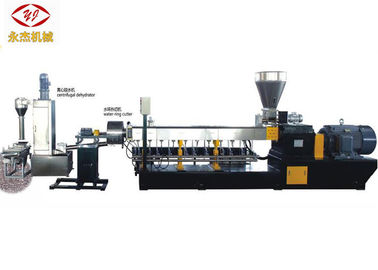

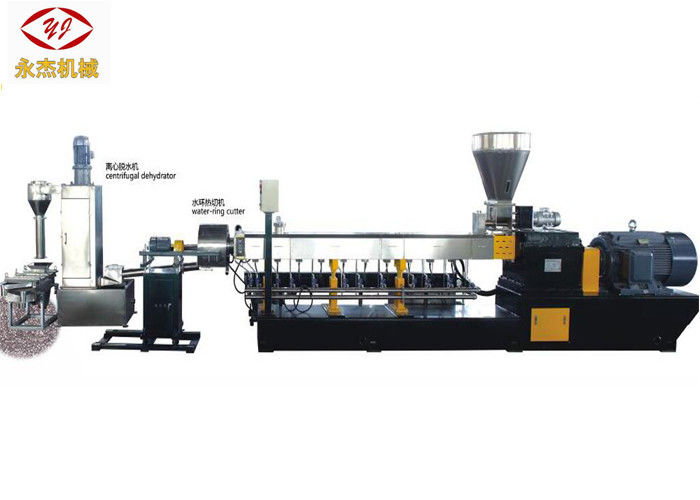

Twin Screw Exturder Water Ring Pelletizer Masterbatch Granulating Line



Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Quick details of sjsl36 water ring pelletizer

Screw diameter:71mm

Screw material:W6Mo5Cr4V2

Barrel diameter:71.8mm

Barrel material:W6Mo5Cr4V2

Motor power:110kw

Motor brand:SIEMENS

L/D:48:1 52:1etc

Output:500-800kg/h



Main parts and technical parameters

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.5kw
1.2 SJ-75 Twin screw extruder set 1 110kw, 44:1
13 Vacuum venting system set 1 2.2kw
1.4 Water cycling system set 1 0.55kw
1.5 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water-ring auxiliary system set 1
3.1 Water-ring die head set 1
3.2 Face cutter with guide rail set 1 1.5KW
3.3 Cutter cover set 1
3.4 Centrifugal dehydrator set 1 5.5KW
3.5 Vibrating sieve set 1 0.4KW
3.6 Storage bin set 1
4 Documents set 1







Business Clause

Lead time:45 days after deposit

Engineers available for overseas installation, commissioning etc

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable



Main Technical Details of Various Water Ring Pelletizer Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

Horizontal Plastic Granulator Machine , Biodegradable Masterbatch Production Line
