Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | PP PE With 85% Caco3 |
|---|---|---|---|
| Warranty: | One Year | Screw Diameter: | 71mm |
| L/D: | 48:1 Or 52:1 | Screw & Barrel Material: | W6Mo5Cr4V2 |
| Motor: | 132kw Or 160kw | Capacity: | 800-1000kg/h |

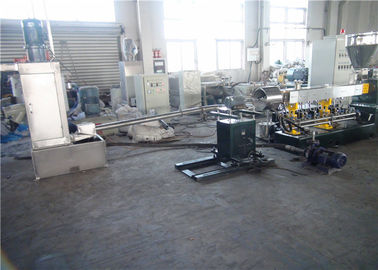

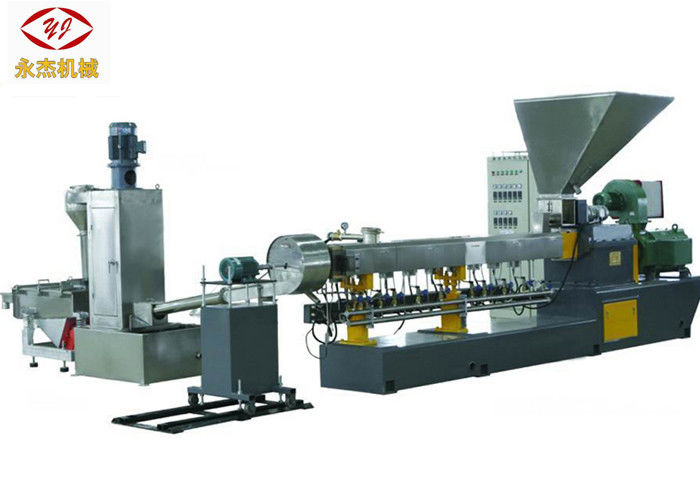

Twin Screw Exturder Water Ring Pelletizer PE PP Masterbatch Machine
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Screw diameter:71mm
Screw material:W6Mo5Cr4V2
Barrel diameter:71.8mm
Barrel material:W6Mo5Cr4V2
Motor power:132kw or 160kw
Motor brand:SIEMENS
L/D:48:1 52:1etc
Output:800-1000kg/h
Main parts and technical parameters
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 1.5kw |

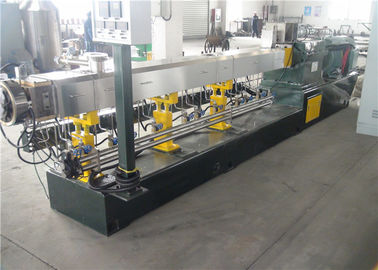

| 1.2 | SJ-75 Twin screw extruder | set | 1 | 132 or 160kw, 48:1 |
| 13 | Vacuum venting system | set | 1 | 2.2kw |
| 1.4 | Water cycling system | set | 1 | 0.55kw |
| 1.5 | Automatic screen changer | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water-ring auxiliary system | set | 1 | |

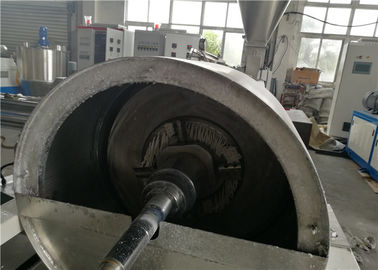

| 3.1 | Water-ring die head | set | 1 | |
| 3.2 | Face cutter with guide rail | set | 1 | 1.5KW |
| 3.3 | Cutter cover | set | 1 | |
| 3.4 | Centrifugal dehydrator | set | 1 | 5.5KW |
| 3.5 | Vibrating sieve | set | 1 | 0.4KW |
| 3.6 | Storage bin | set | 1 | |
| 4 | Documents | set | 1 |
Main Technical Details of Various Water Ring Pelletizer Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
