Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||Pvc Sole Shoe|
|Warranty:||One Year||Screw Material:||38CrMoAL|
|Capacity:||500kg/h||Air Transmission:||Two Stages|
SJSL75B Twin Screw PVC Cable Extruder Machine PVC Pelletizing Machine
Cutting way: air cooling die face for cable material
Lead time:45 days after deposit
Heating zones: 9 zones
1). Diameter: ￠72mm 2). Structure: The first section works for main feeding, the fifth section is set up for venting naturally, and the eighth section is set up for vacuum venting and others are blocked. 3). Material: The material of the barrel is made of 38CrMoAl nitriding steel.
4). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 60kw and the max heating capacity every section can reach 500℃.
5). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
Scope of supply
|1||High speed mixer/cooler||set||1||500/1000L|
|2||Screw feed machine||set||1|
|3||Twin screw extrusion system||set||1|
|3.2||SJ-75 Twin screw extruder||set||1||132kw, 36:1|
|3.3||Vacuum venting system||set||1||2.2kw|
|3.4||Water cycling system||set||1||0.55kw|
|3.5||Automatic screen changer||set||1||1.5kw|
|5||Air-cooling auxiliary system||set||1|
|5.3||Second-stage conveying system||set||1||8kw|
|6||Automatic weighing & packaging machine||set||1|
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

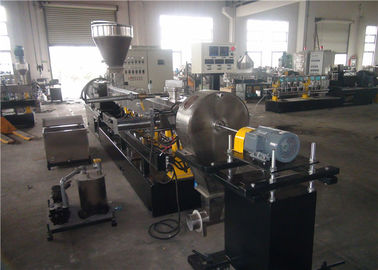

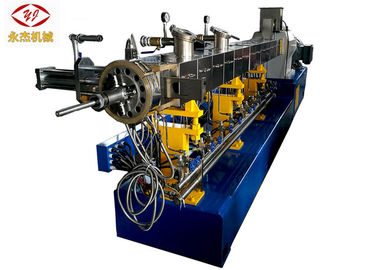

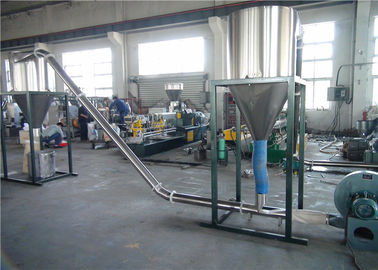

Photo of SJSL75B PVC Twin Screw Extruder
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
