Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | Pvc Cable Shoe Sole |
|---|---|---|---|
| Barrel Diameter: | 51mm | Screw Material: | 38CrMoAL Nit-ridged Steel For Anti Corrsion |
| Screw Diameter: | 50.5mm | L/D: | 44:1 |
| Output: | 100-150kg/h | Screw Speed: | 600rpm |
SJSL51 100-150kg/h PVC Pelletizing Line Twin Screw Extruder Machine
Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
Quick details
Power:55kw
Screw diameter:50.5mm
Barrel diameter:51mm
Screw & barrel material:38CrMoAl
Output:100-150kg/h
Cutting way: air cooling die face for pvc material
Warranty:one year
Lead time:45 days after deposit
Heating power:26kw
Heating zones: 9 zones
Application: PVC cable material, PVC hose material, PVC shoe sole material etc
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Scope of Supply
| No. | Contents | Unit | Quantity | Marks |
| 1 | High speed mixer | set | 1 | |
| 2 | Screw loader machine | set | 1 | |
| 3 | Twin screw extrusion system | set | 1 | |
| 3.1 | Feeding system | set | 1 | 0.75kw |
| 3.2 | SJ-51Twin screw extruder | set | 1 | 45kw, 44:1 |
| 3.3 | Vacuum venting system | set | 1 | 1.5kw |
| 3.4 | Water cycling system | set | 1 | 0.55kw |
| 3.5 | Automatic screen changer | set | 1 | 1.5kw |
| 4 | Electric cabinet | set | 1 | |
| 5 | Air-cooling auxiliary system | set | 1 | |
| 5.1 | Die head | set | 1 | |
| 5.2 | Face cutter | set | 1 | 1.5kw |
| 5.3 | One-stage conveying system | set | 1 | 4kw |
| 5.4 | Product silo | set | 1 | 4kw |
| 6 | Documents | set | 1 |

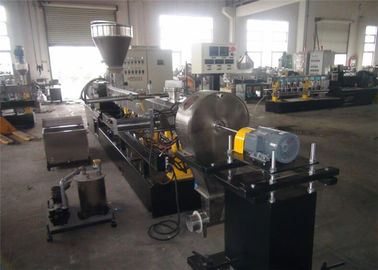

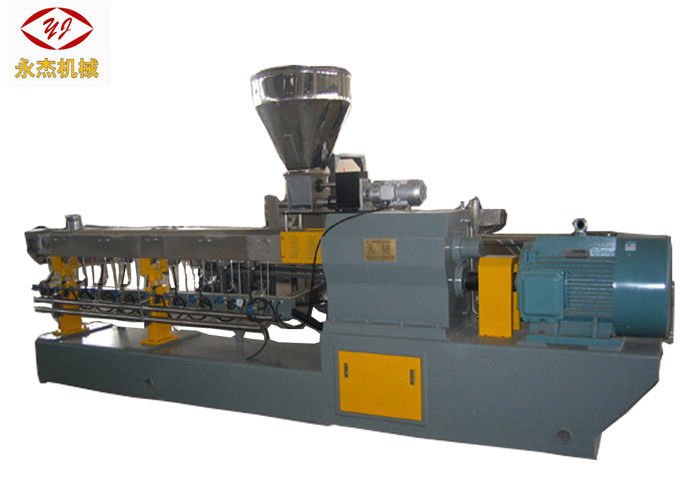

Photo of SJSL51 100-150kg/h Twin Screw Extruder
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
