Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin-single Screw Two Stage | Application: | Carbon Black Filler Masterbatch |
|---|---|---|---|
| Warranty: | One Year | L/D: | 48:1/9:1 |
| Screw Diameter: | 71mm/180mm | Motor: | 132/55kw |
| Capacity: | 500-700kg/h | Cutting Way: | Water Ring Hot Cutting |
ZL75-180 Two Stage Carbon Black Filler Masterbatch Machine Plastic Pellet Production Line
Two Stage Extruder
ZL series, that’s two stage compounding extruder consisted of two parts. Mainly there are three types of two stage extruder combination:
1. Single screw main extruder machine-single screw submachine
2. Single screw main pelletizing machine-twin screw submachine
3. Twin screw main pelletizing machine-single screw submachine
The first two types are widely used for recycled plastic granulating.
And the third type for heat-sensitive material like PVC, POM, XLPE etc.
The twin screw extruder (SJSL-) at the first stage is to realize good shearing and compounding for material, and then the extrusion and pelletizing by YD single screw extruder (second stage). The new, scientific and advanced design and structure can avoid material decomposition caused by material overheating
Application of Twin-Single Screw Extruder
Carbon black master batch
PVC cable, PVC transparent bottle and blood transfusion tube materials
PE silicon hydride crosslink cable material, peroxide crosslink cable material
Wood- plastic blending material
Heat-sensitive polymeride.
Quick details
Power:132kw for twin screw exturder, 55kw for single screw extruder
Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine
L/D:48:1 & 9:1
Output:500-700kg/h according to different material, formula and technology of process etc.
Cutting way:water ring
Warranty:one year
Lead time:45 days after deposit
technical requirements:
Dynamic data: low voltage power supply standard(DIN/IEC38): 380ｖ-5+10%, 50Hz-/+2% phase/N/PE50Hz.
control voltage standard (transformed): 220V AC( contactor, meter, electromagnetic valve ).
Temperature: 10-40℃.Humidity: max.80%, no condensation.
Total wattage:～300 KW.
Water requirements: circulating water: The cooling recycling water in the barrel must be non-inoic soft water (distilled water).
Water sources: 1. Creating a pool (4-6㎥) outside the workshop, using water pump to make recycling water.
2. Using tap water directly, but it’s wasteful.
Weight :Extruder:~8T
Auxiliary system:~2T
Business Clause
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

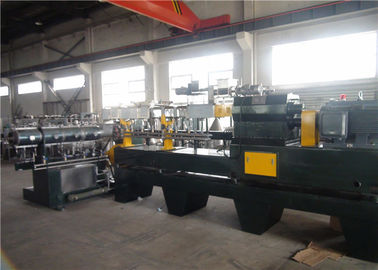

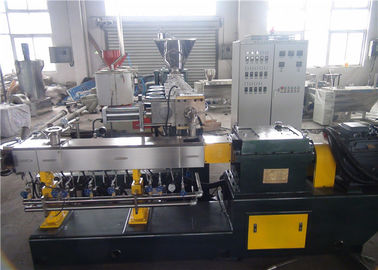

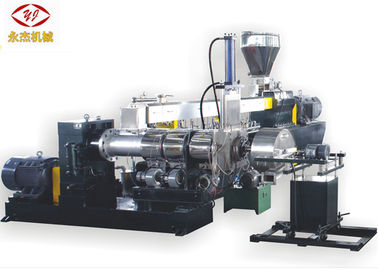

Photo of ZL75-180 carbon black filler masterbatch machine
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Typical production capacity (kg/h) | |
| ZL51-100 | SJSL51 | 50.5 | 20-48 | 500-600 | 37/45 | 150-300 |
| YD100 | 100 | 7-15 | 65-85 | 37 | ||
| ZL60-120 | SJSL60 | 59.5 | 20-44 | 400 | 37/45 | 200-350 |
| YD120 | 120 | 7-15 | 65-90 | 37 | ||
| ZL65-150 | SJSL65 | 62.4 | 20-48 | 400-600 | 55/75 | 250-450 |
| YD150 | 150 | 7-15 | 65-85 | 37/45 | ||
| ZL75-180 | SJSL75 | 71 | 20-44 | 400-600 | 75/90 | 400-650 |
| YD180 | 180 | 7-15 | 65-90 | 45/55 | ||
| ZL95-200 | SJSL95 | 94 | 20-44 | 400-600 | 220/280 | 700-15000 |
| YD200 | 200 | 7-15 | 65-85 | 75/90 | ||
