Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine

China Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine supplier
Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine supplier Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine supplier Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine supplier

Large Image :  Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL75B

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Feeding: Automatic Loss In Weight Feeding System Application: Plastic Pellets
Overseas Engineers: Available For Installation And Comissioning Screw Diameter: 71mm
Motor: 160kw Capacity: 500-6800kg/h
L/D: 48:1 Material Of Barrel: 45#forged Steel

SJSL75B Automatic Feeding Water Ring Twin Screw Extruder Filler Masterbatch Machine



Quick details

Feeding: loss in weight, automatic feeding.

Power:160kw

Screw material:W6Mo5Cr4V2

Barrel material: 45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth

and abrasion resistant. The hardness is HRC60-64.

L/D:48:1

Output:500-800kg/h according to different material, formula and technology of process etc.

Revolutions: 0-600rpm;

Reduction ratio: i = 2.5:1



Loss in weight feeding details

1) equipped with a feeder part installed on the weighing platform, with high-precision weighing sensor made by United States Toledo,

2) Weighing plastform is the square scale with material ss304;

3) all parts contacted with the raw material made of SS304, and easily-disasseable feeding part for fast change and easy clean. 4) no dead ball hopper, equipped with horizontal mixing;

5) Motor power: 1.5KW, speed ratio: 11: 1, with inverter speed control;

6) Microchip controller to ensure high accurate feeding, feeding accuracy can reach ± 0.5%. Standard power: 380V, 3-phase, 50 Hz;

7) with the hopper to ensure that the material into the barrel according to seted proportioning;

8) equipped with high and low level meter.



Business Clause

Lead time:45 days after deposit

Engineers available for overseas installation, commissioning etc

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

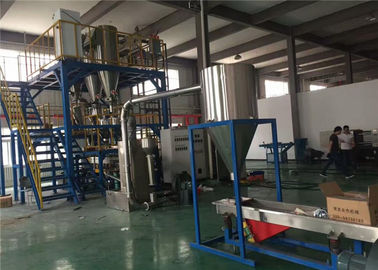

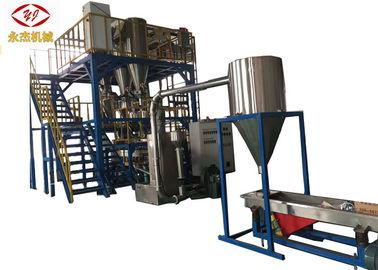

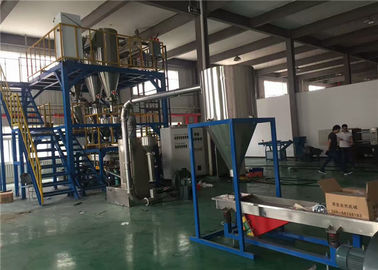

Photo of SJSL75B Filler Masterbatch Machine

Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine



Automatic Feeding Masterbatch Extruder , 2 Stage Hdpe Extrusion Machine



Main technical data of various model of twin screw extruder pelletizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
