Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | PP PE Etc |
|---|---|---|---|
| Warranty: | One Year | Screw Diameter: | 71mm |
| L/D: | 48:1 | Screw & Barrel Material: | W6Mo5Cr4V2 |
| Motor: | 110kw | Capacity: | 500-600kg/h |
SJSL75A Twin Screw Extruder Water Ring Pelletizer White Filler Masterbatch Machine
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Screw diameter:71mm
Screw material:W6Mo5Cr4V2
Barrel diameter:71.8mm
Barrel material:W6Mo5Cr4V2
Motor power:110kw
Motor brand:SIEMENS
Inverter brand: Sweden ABB
L/D:48:1
Output:500-600kg/h

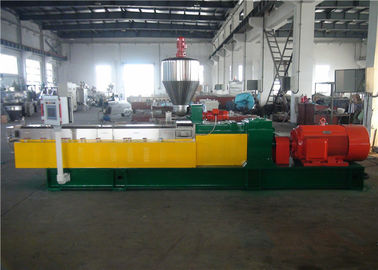

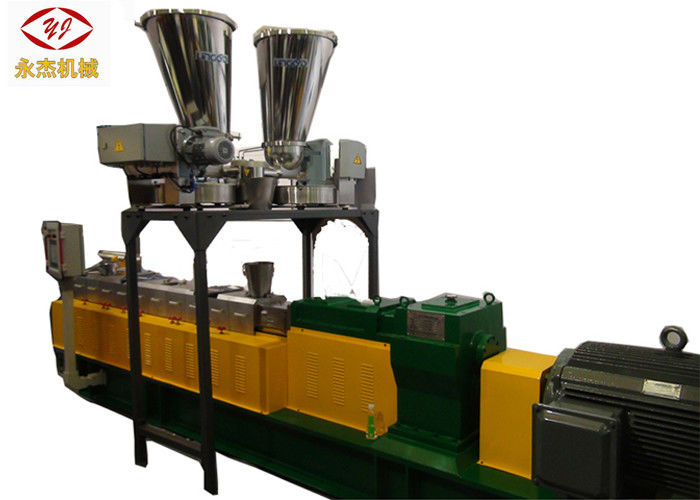

Photo of SJSL75A white filler masterbatch machine
Pre-sales service
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.
Main Technical Details of Various Water Ring Pelletizer Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
