|Screw Design:||Twin Screw Extruder||Application:||Black Masterbatch Plastic Pellets|
|Overseas Engineers:||Available For Installation And Comissioning||Screw Diameter:||35.6mm|
|L/D:||44:1||Cutting Way:||Water Ring Die Face|
SJSL36 PE PP High Filler Masterbatch Manufacturing Machine Plastic Pelletzing Machine
Screw material: W6Mo5Cr4V2
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
Output:20-70kg/h according to different material, formula and technology of process etc.
Reduction ratio: i = 2.5:1
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel diameter:36mm, The first section works for main feeding, the fifth section is set up for venting naturally, and the eighth section is set up for vacuum venting and others are blocked.
Motor : AC motor, power: 18.5KW, brand: SIEMENS BEIDE;
Speed governing: The ABB inverter control speed;
Transmission gear: Parallel tri-axial structure is combination of
reduction and matrix. The gear is made of high
quality alloy (20CrNi2Mo). It had been treated by
cementation heat process, the precision grade can
reach 6th. It guarantee the tooth surface is high
speed, overloading, low noise and high torque.
Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There
is hydraulic lubrication in the gear engagement and gear
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.
Scope of supply
|1||High speed mixer||set||1||50L|
|2||Twin screw extrusion system||set||1|
|2.3||SJ-36 Twin screw extruder||set||1||15kw, 44:1|
|2.4||Vacuum venting system||set||1||0.75kw|
|2.5||Water cycling system||set||1||0.55kw|
|2.6||Manual screen changer||set||1||0.75kw|
|4||Water-ring assembly system||set||1|
|4.3||Water-ring cutting cover||set||1|
|4.4||Centrifugal dehydrator||set||1||2.2KW, 3KW|

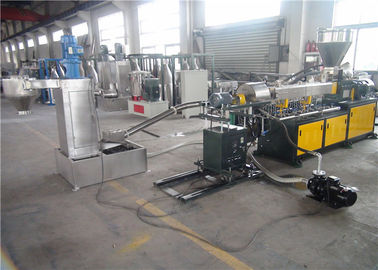

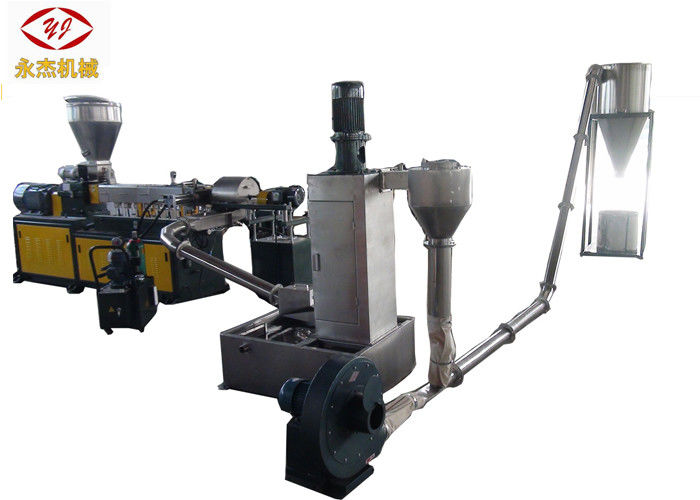

Photo of SJSL36 lab mini extruder plastic pelletizing machine
Main technical data of various model of twin screw extruder pelletizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
