|Screw Design:||Twin Screw Extruder||Application:||PLA PE PP ABS EVA PBT POM PS Etc|
|Warranty:||One Year||Gearbox Reduction Ratio:||3:1|
75kw PE PP ABS Polymer Extruder Plastic Pelletizing Machine Filler masterbatch Machine
Water strand plastic pelletizing machine application
Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.
Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.
Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.
Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.
Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.
Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc
Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc
The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.
Screw speed:0-600rpm, speed ratio:3:1
Direction of rotation: Co-rotating
Screw&elements: W6Mo5Cr4V2(6542) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel diameter: ￠63mm
2). Structure: The first section works for main feeding, the fifth section is set up for venting naturally, and the Ninth section is set up for vacuum venting and others are blocked.
3). Material: The material of the barrel is made of 38CrMoAl nitriding steel.
4). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 60kw and the max heating capacity every section can reach 500℃.
5). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
Scope of Supply
|1||Twin screw extrusion system||set||1|
|1.2||SJ-65Twin screw extruder||set||1||75kw, 40:1|
|1.3||Vacuum venting system||set||2||2.2kw|
|1.4||Water cycling system||set||1||0.55kw|
|1.5||Automatic screen changer||set||1||1.5kw|
|3||Water-strand auxiliary system||set||1|

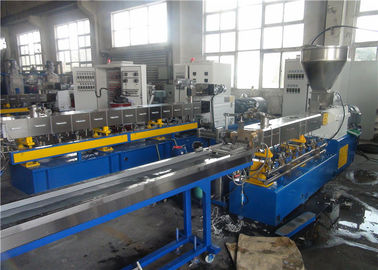

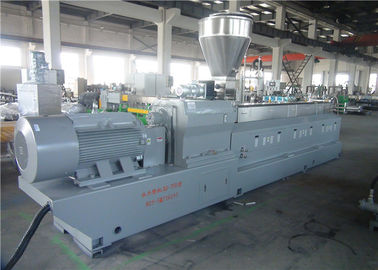

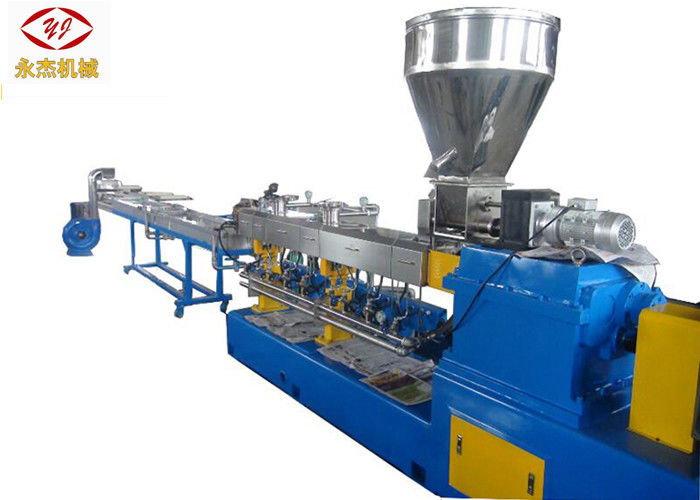

Photos of Water Strand Plastic Pelletizing Machine
Free spare parts:
|2||Output and input shaft oil seals||piece||3|
|3||Venting room seal ring||piece||1|
|5||Allen key (inner)||set||1||5 pieces|
|6||Allen key (outer)||set||1||3 pieces|
|7||Cross, Flat screw driver||piece||1 each||2 pieces|
|8||Screw hoisting ring||piece||2|
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
