Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twi-single Screw Extruder | Application: | Pvc Pellets |
|---|---|---|---|
| Warranty: | One Year | Lead Time: | 45days After Order |
| Screw Diameter: | 50.5mm/100mm | Motor: | 45/37kw |
| Capacity: | 150-300kg/h | Cutting Way: | Two Stage Air Cooling Die Face |
PVC Cable Shoe Sole Hose Film Twin Screw Extruder PVC Pellet Making Machine
Quick details
Power:45kw for twin screw exturder, 37kw for single screw extruder
Screw diameter:50.5mm for twin screw extruder, 100mm for single screw submachine
L/D:36:1 & 7:1
Output:150-300kg/h according to different material, formula and technology of process etc.
Cutting way: air cooling die face
Warranty:one year
Lead time:45 days after deposit
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Pre-sales service
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year

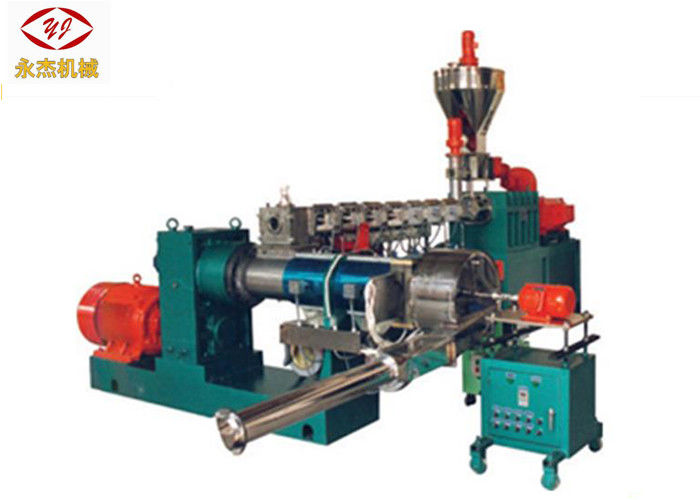

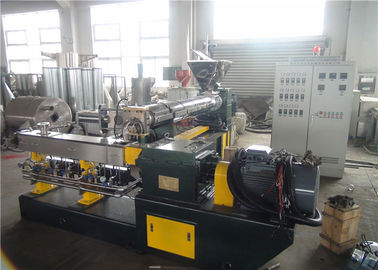

Photo of pvc pelletizing machine plastic extrustion machine
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Typical production capacity (kg/h) | |
| ZL51-100 | SJSL51 | 50.5 | 20-48 | 500-600 | 37/45 | 150-300 |
| YD100 | 100 | 7-15 | 65-85 | 37 | ||
| ZL60-120 | SJSL60 | 59.5 | 20-44 | 400 | 37/45 | 200-350 |
| YD120 | 120 | 7-15 | 65-90 | 37 | ||
| ZL65-150 | SJSL65 | 62.4 | 20-48 | 400-600 | 55/75 | 250-450 |
| YD150 | 150 | 7-15 | 65-85 | 37/45 | ||
| ZL75-180 | SJSL75 | 71 | 20-44 | 400-600 | 75/90 | 400-650 |
| YD180 | 180 | 7-15 | 65-90 | 45/55 | ||
| ZL95-200 | SJSL95 | 94 | 20-44 | 400-600 | 220/280 | 700-15000 |
| YD200 | 200 | 7-15 | 65-85 | 75/90 | ||
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
