71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones

China 71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones supplier
71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones supplier 71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones supplier 71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones supplier

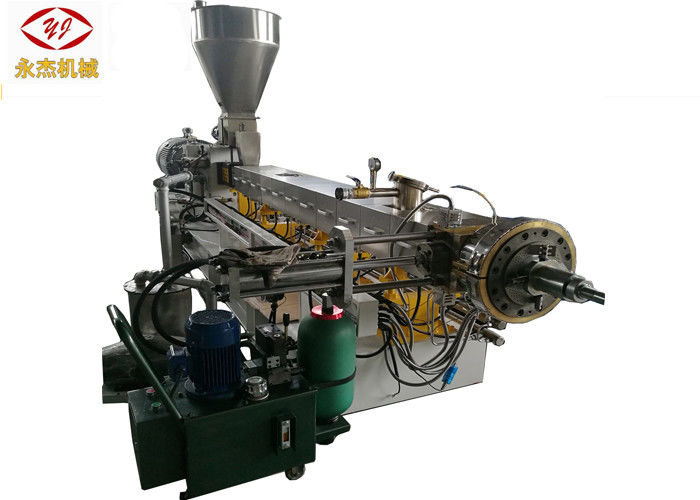

Large Image :  71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL75D

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Pvc Pellets
Gearbox: 800rpm High Torque Barrel Material: 38CrMoALanti Corrosion
Screw Diameter: 71mm Motor: 280kw
Overseas Engineering: Available For Installation And Trainning Output: 500-1000 Kg/h

SJSL75D Die Face Pelletizier Twin Screw Extruder PVC Pelletizing Machine

Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
Quick details
Power:280kw
Screw diameter:71mm
Barrel diameter:71.8mm
Gearbox:800 rpm, reduction ratio:1.9:1
Screw & barrel material:38CrMoAl
Output:500-1000kg/h
Cutting way: air cooling die face for pvc pellets
Warranty:one year
Lead time:45 days after deposit
Heating zones: 9 zones
Inverter brand:ABB
Gear box: high torque, input 1480rpm, output 600rpm, reduction ratio:2.5:1
Barrel length:290*9=2610mm

Free spare parts:

No.ContentsUnitQuantityMarks
1Screw elementsset~300mm
2Output and input shaft oil sealspiece3
3Venting room seal ringpiece1
4Asbestos glovespairs2
5Allen key (inner)set15 pieces
6Allen key (outer)set13 pieces
7Cross, Flat screw driverpiece1 each2 pieces
8Screw hoisting ringpiece2
9Bladepiece30


Pre-sales service
♦1. Inquiry and consulting support.♦2.Selecting economical and suitable extruder and related machines for customers.
♦3.Providing technical details of machine.
♦4.Providing means of trial performance for customer.
♦5.Factory tour & assistance of invitation letter when needed.
Sales service
♦1.Recommending engineering conditions required for installation.
♦2.Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2.Filing in detail customer’s order information.
♦3.Providing long-term maintenance service and spare parts.
♦4.Giving technical support to customer for developing new product.
♦5.Providing free maintenance for a year

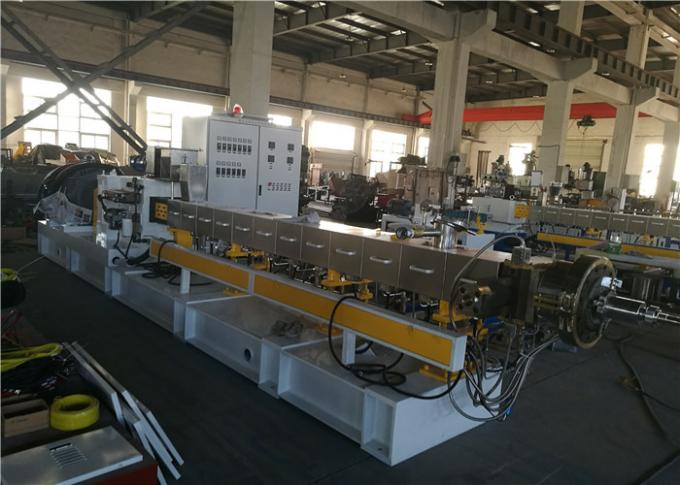

Photo of Nanjing SJSL75D
71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones
Main technical data of various model of twin screw extruder pelleitizing machine

Model typeSeriesBarrel Diameter (mm)Screw Diameter (mm)Screw L/Dscrew speed n(r/min)Main motor power(Kw)Screw torque T(N.m)Torque rating (T/A3)Typical production capacity (kg/h)
SJSL20A/B2221.732-44500/6004/5.5kw30/30
SJSL-36A/B/C/D3635.632-48400/60011/15/18.5/22125-2254.6-8.330-120
SJSL-51A/B/C/D5150.532-52500/60045/55/75/90405-6805.1-8.5120-400
SJSL-65A/B/C/D6362.432-64500/60075/90/110/132680-12004.8-8.5180-750
SJSL-75A/B/C/D727132-64500/600110/132/160/250995-18904.6-8.7300-1200
SJSL-95A/B/C/D949332-64500/600250/315/450/5502260-45104.7-8.7700-2500
SJSL-135A/B/C/D13513332-48400/500550/750/900/12006200-108004.4-7.71550-6500


Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
