Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Plastic Type: | White, Blue White, Green Pet Flake |
|---|---|---|---|
| Output: | 300kg | Flake Requirements: | Less Than 20mm, Moisture <0.5% |
| Barrel Diameter: | 71.8mm | Screw Diameter: | 71mm |
| Screw Material: | W6Mo5Cr4V2 | Barrel Section: | 9 Sections |

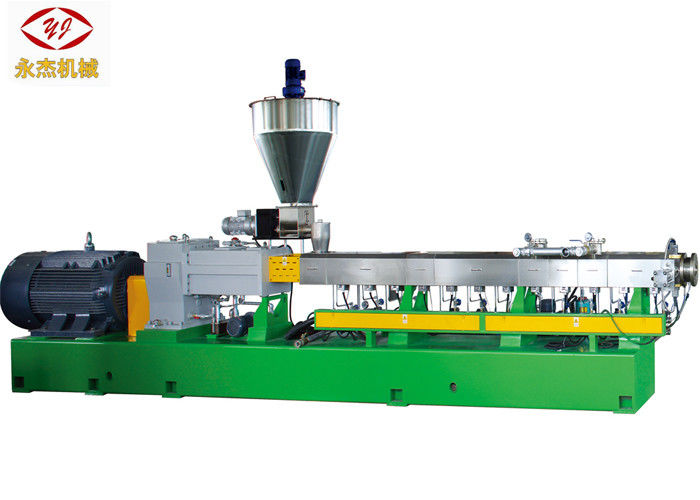

SJSL75A 300kg/h pet recycling machine twin screw extruder PET Pelletizing Machine
Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.
Water strand plastic pelletizing machine application
Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.
Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.
Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.
Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.
Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.
Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc
Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc
The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.
Quick details of the machine
Screw diameter:71mm
Barrel diameter:71.8mm
Power:132kw
Barrel&screw material:W6Mo5Cr4V2 high speed tool steel
L/D:36:1
Length of barrel:290*9 section=2610mm
Gearbox:0-300rpm
Output of machine:400kg/h
Applicable for pet flake less than 15mm, moisture less than 1%
Special screw array with wear shear of flake material, super power vacuum system to reduce IV loss maximumly.
Scope of supply:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 1.5kw |
| 1.2 | Side feeder | set | 1 | for pigment |
| 1.3 | SJ-75Twin screw extruder | set | 1 | 110kw, 36:1 |
| 1.4 | Vacuum venting system | set | 1 | 7.5kw, two ports |
| 1.5 | Water cycling system | set | 1 | 0.55kw |
| 1.6 | Automatic screen changer | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water-strand auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Water trough | set | 1 | 4M |
| 3.3 | Dryer | set | 1 | 2.2kw |
| 3.4 | Pelletizer | set | 1 | 500kg/h, 5.5kw |
| 4 | Documents | set | 1 |
Word famous brand of electric components
1). PID centralized control, RKC meter, intelligent type, double channel
2). Extruder inverter is Japanese ABB
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5. The main motor is SISMENS BEIDE;
6. The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve adopt Denmark DANFOSS product.
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
