Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | Plastic Pellets |
|---|---|---|---|
| Warranty: | One Year | Air Conveyor Strand: | Stainless Steel |
| Screw Diameter: | 62.4mm | Motor: | 75kw |
| Belt Length: | 18M Or Customized | Capacity: | 200kg/h |

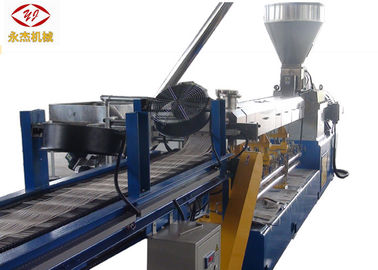

Corn Starch Biodegradable PLA PE PP Plastic Pellets Machine Filler Masterbatch Machine
Quick details
Power:90kw option according to required output
Screw diameter:62.4mm
Barrel diameter: 63mm
L/D:48
Power:75kw
Output:300-450kg/h according to different material, formula and technology of process etc.

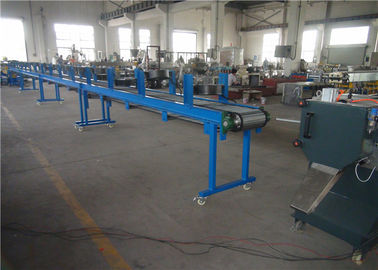

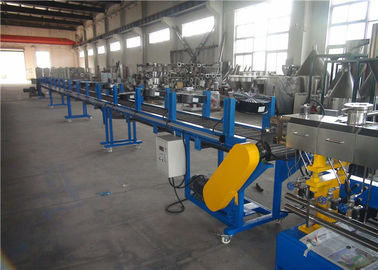

Cutting way: air cooling belt for biodegradable corn startch, PLA, also underwater and water strand for PLA according to different recipe of PLA.
Warranty:one year
Lead time:45 days after deposit
Pre-sales service
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.
Scope of supply
| No. | Contents | Unit | Quantity | Marks |
| 1 | High speed mixer | set | 1 | 500L |
| 2 | Screw feeder machine | set | 1 | 2.2kw |
| 3 | Twin screw extrusion system | set | 1 | |
| 3.1 | Feeding system | set | 1 | 1.5kw |
| 3.2 | SJ-75B Twin screw extruder | set | 1 | 132kw, 48:1 |
| 3.3 | Vacuum venting system | set | 1 | 2.2kw |
| 3.4 | Water cycling system | set | 1 | 0.55kw |
| 3.5 | Automatic screen changer | set | 1 | 1.5kw |
| 4 | Electric cabinet | set | 1 | |
| 5 | Air cooling strand auxiliary machine | set | 1 | |
| 5.1 | Die head | set | 1 | |
| 5.2 | Conveyer belt 18M | set | 1 | |
| 5.3 | Pelletizer | set | 1 | |
| 5.4 | Vibrator | set | 1 | |
| 5.5 | Cooling production bin | set | 1 | |
| 6 | Documents | set | 1 |
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many
