High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor

Certification
Good quality PVC Pelletizing Machine for sales
Good quality PVC Pelletizing Machine for sales
Thank you for the good quality machine, and we are sure will be partner for a long run!

—— Mohammed

It's happy to work together with your company!

—— Radovan

I'm Online Chat Now

High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor

China High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor supplier
High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor supplier High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor supplier High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor supplier

Large Image :  High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL65

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Wpc Profile, Wpc Sheet
Warranty: One Year Overseas Engineers: Available For Installation And Comissioning
Screw Diameter: 62.4mm Motor: 132kw
Capacity: 100-200kg/h Material: PVC PE PP POM Etc+wood Fiber

WPC Extruder Machine Air Cooling Plastic Pelletizing Machine For Wood Plastic Composite



Quick details

Power:132kw option according to required output

Screw diameter:62.4mm

Screw material: W6Mo5Cr4V2 (6542#) high speed tool steel

Barrel diameter: 63mm

Barrel material:45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside

L/D:40

Output:100-200kg/h according to different material, formula and technology of process etc.

Cutting way: air cooling die face plastic pellet machine is used for wpc plastic pellet

Warranty:one year

Lead time:45 days after deposit



World famous brand of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is Japanese joint venture ABB

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve adopt Denmark DANFOSS product.

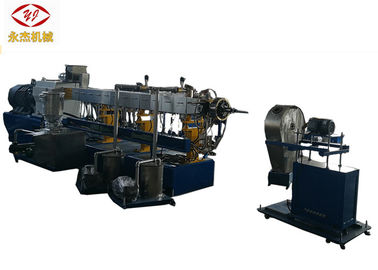

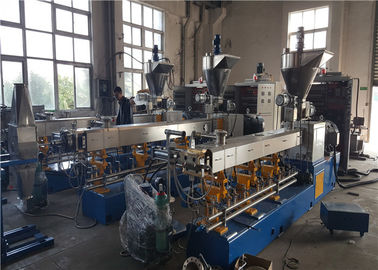

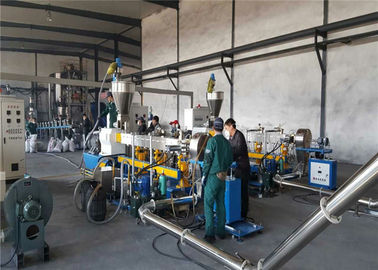

Photo of Wood Plastic Composite WPC Extruder Air Cooling Plastic Pellet Machine

High Speed Automatic WPC Extruder Machine SISMENS BEIDE Brand Main Motor



Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.



How to choose machine for plastic pellet?

1. Just tell us your rough formula, like 50% PE +50% wood fiber + additives etc.

2. Your expected output per hour of the mahcine



Package of machine

1. Sea worthy of film or bubble film

2. Wooden box or frame according to customer's requirements
