93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet

China 93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet supplier
93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet supplier 93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet supplier 93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet supplier 93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet supplier

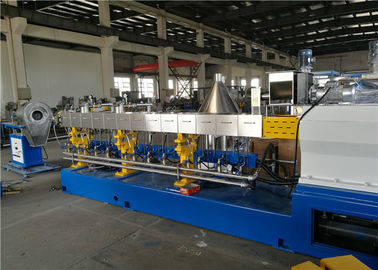

Large Image :  93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL95

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: PE PP PVC WPC Plastic Pellets
Warranty: One Year Color Of Machine: Customized
Screw Diameter: 93mm Motor: 355kw
Capacity: 800kg/h Cutting Way: Three Stage Air Cooling Die Face

PE PP PVC WPC Pellet 800kg/h Twin Screw Extruder Machine WPC Extruder Machine



Quick details

Power355kw option according to required output

Screw diameter:93mm

Screw material: W6Mo5Cr4V2 (6542#) high speed tool steel

Barrel diameter: 94mm

Barrel material:45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside

L/D:40

Output:800kg/h according to different material, formula and technology of process etc.

Cutting way: air cooling die face plastic pellet machine is used for wpc plastic pellet

Warranty:one year

Lead time:45 days after deposit





Scope of supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 2.2kw
1.2 SJ-95Twin screw extruder set 1 355kw, 40:1
1.3 Water cycling system set 1 1.5kw
2 Electric cabinet set 1
3 Air-cooling auxiliary system set 1
3.1 Die head set 1
3.2 Face cutter set 1 2.2kw
3.3 First air conveying system set 1 11kw
3.4 First air conveying system set 1 5.5kw
3.5 Product silo set 1 5.5kw
4 Documents set 1



Interlock control

1). The extruder motor is set up the current overload to achieve chain shutdown protection with electric control cabinet.

2). The control system of main machine motor is interlocked with control system of feeder motor as a way of protection mutually.

3). Transmission gearbox and lubrication system are interlocked for protection.

4). The extruder is set up the pressure overload to achieve chain shutdown protection with electric control cabinet.

5). The main motor is connected with the nylon pin of transmission gearbox so as to cut off the nylon pin when torque is overload

Electric components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve adopt Denmark DANFOSS product.

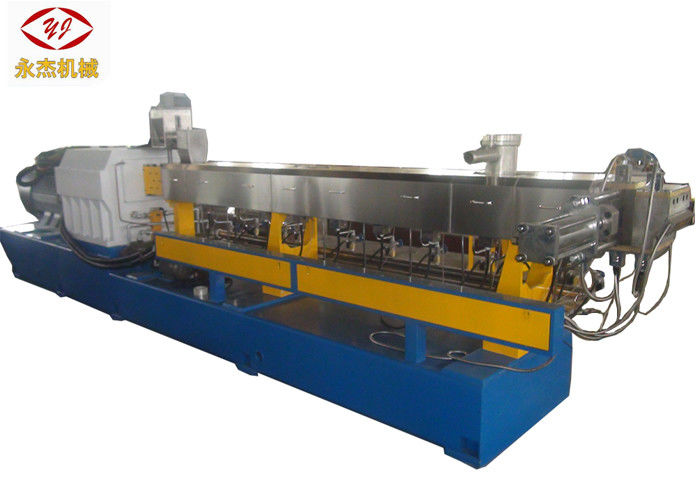

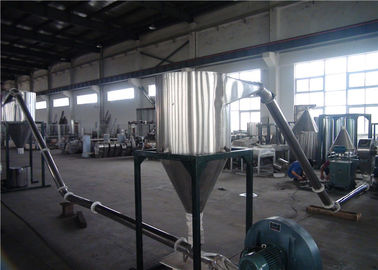

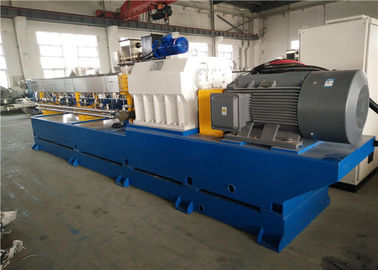

Photo of Wood Plastic Composite WPC Extruder Air Cooling Plastic Pellet Machine

93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet



93mm Screw Diameter WPC Extruder Machine With 1 Set Electric Cabinet



Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
