Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed

China Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed supplier
Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed supplier Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed supplier Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed supplier

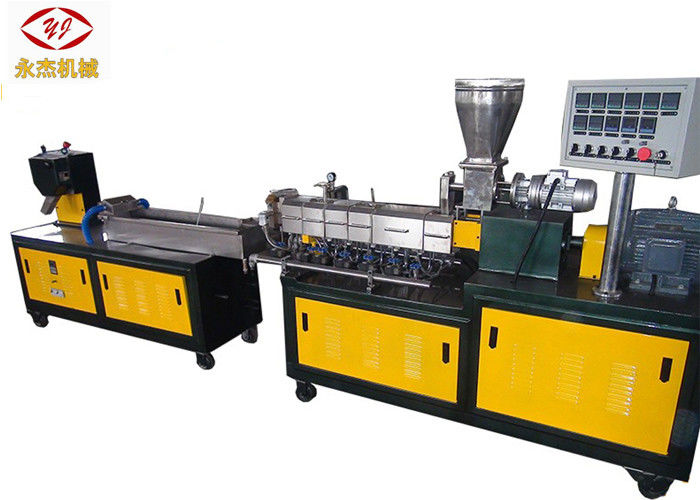

Large Image :  Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL20

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Plastic Pellets
Heating Section: 7 Zones Barrel Diameter: 22mm
Motor: 5.5kw Capacity: 2-10kg/h
L/D: 40:1 Warranty: One Year

SJSL20 2-15kg Mini Lab Twin Screw Extruder Machine Plasitc Pelletizing Machine



Quick details

Power:5.5kw

Screw material:W6Mo5Cr4V2

Barrel material: 45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth

and abrasion resistant. The hardness is HRC60-64.

L/D:40:1

Output:20-70kg/h according to different material, formula and technology of process etc.

Revolutions: 0-600rpm;

Reduction ratio: i = 2.5:1

Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.

Screw diameter:21.7mm

Barrel diameter:22mm, The first section works for main feeding, the fifth section is set up for venting naturally, and the ninth section is set up for vacuum venting and others are blocked.



Scope of supply

No. Contents Unit Quantity Marks
1 High speed mixer set 1 5L
2 Twin screw extrusion system set 1
2.1 Feeding system set 1 0.25kw
2.2 SJ-20 Twin screw extruder set 1 5.5kw, 40:1
2.3 Vacuum venting system set 1 0.75kw
2.4 Water cycling system set 1 0.55kw
2.5 Manual screen changer set 1
3 Electric cabinet set 1
4 Water stand auxiliary system set 1
4.1 Die head set 1
4.2 Water trough set 1 1 M
4.3 Dryer set 1 0.26KW
4.4 Pelletizer set 1 0.75KW
5 Documents set 1

Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed

World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

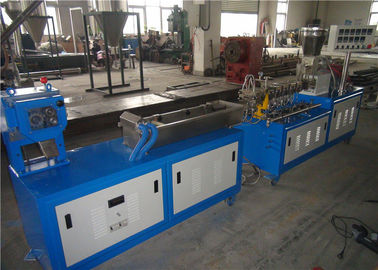

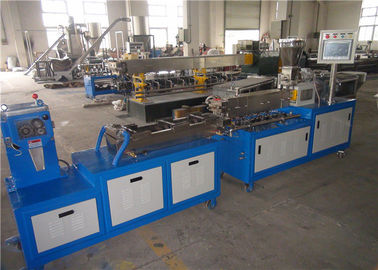

Photo of SJSL20 lab mini extruder

Plastic Compound Testing Lab Twin Screw Extruder 0-600rpm Revolution Speed



Main technical data of various model of twin screw extruder pelletizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-20 A/B 21.7 22 32-44 400/600 4/5.5 30 4.8 2-15
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
