Product Details:
Payment & Shipping Terms:
|
| Pelletizer: | 0.75kw | Color Of Machine: | Any Color Can Be Customized |
|---|---|---|---|
| Screw Material: | 38CrMoAL | Barrel Material: | 38CrMoAL Nitridge Steel |
| Barrel Diameter: | 22mm | Water Bath Length: | 1000mm |
| Control Mode: | PLC Or PID Optional | Dryer: | 0.26kw |
PE/PP/ABS/PC/PVC/PS/PBT Nitridged Steel Mini Twin Screw Extruder Lab Plastic Pelletizing Machine
Yongjie laboratory mini extruder SJSL20 is widely used among our customers of universities, research center, and factory R&D department for the testing of formula, compounding etc.
There are two electric control type, PID centralized contrial and SIEMENS PLC touch screen control.
Quick details
Power:5.5kw
Screw diameter:21.7mm
Screw material:38CrMoAL
Barrel diameter:22mm
Barrel material:38CrMoAL
Output:around2-15kg/h
Dryer:0.26kw
Pelletizer:0.75kw
Cutting way: water strand, air cooling strand also available
Warranty:one year
Lead time:45 days after deposit
Heating power:16kw
Heating zones: 7zones
Barrel length:120*7=840mm
Control type:PID or PLC
Screw
Diameter:￠21.7mm
L/D:40:1
Direction of rotation: Co-rotating
Screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel
1). Structure: The first section works for main feeding, and the sixth section is set up for vacuum venting, the others are blocked.
2). Material: The material of the barrel 38CrMoAlA, surface hardness: HV950-1050, depth 0.5-0.7mm 3). Heating: Adopt multiple step format electric heating. All zones are cast copper heater. The total heating power is 16KW and the max heating capacity every section can reach
500℃.
4). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
5). Length: 120*7=840mm
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Scope of supply
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 0.25kw |
| 1.2 | SJ-20 Twin screw extruder | set | 1 | 5.5kw, 40:1 |
| 1.3 | Vacuum venting system | set | 1 | 0.75kw |
| 1.4 | Water cycling system | set | 1 | 0.55kw |
| 1.5 | Manual screen changer | set | 1 | |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water stand auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Water trough | set | 1 | 1 M |
| 3.3 | Dryer | set | 1 | 0.26KW |
| 3.4 | Pelletizer | set | 1 | 0.75KW |
| 4 | Documents | set | 1 |

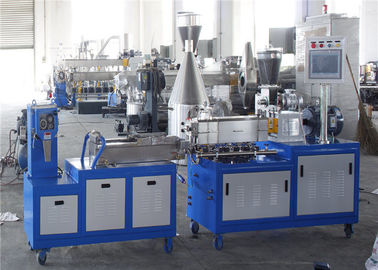

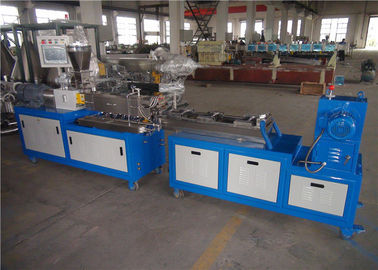

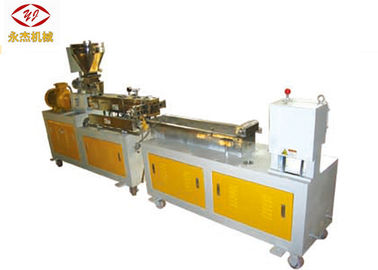

Photo of Laboratory Mini Extruder
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special
