|Screw Material:||W6Mo5Cr4V2||Screw Diameter:||21.7mm|
|Heating Section:||7 Zones||Barrel Diameter:||22mm|
SJSL20 2-15kg Mini Lab Twin Screw Extruder Machine Plasitc Pelletizing Machine
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
Output:20-70kg/h according to different material, formula and technology of process etc.
Reduction ratio: i = 2.5:1
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel diameter:22mm, The first section works for main feeding, the fifth section is set up for venting naturally, and the ninth section is set up for vacuum venting and others are blocked.
1). Structure: The first section works for main feeding, and the sixth section is set up for vacuum venting, the others are blocked.
2). Material: The material of the barrel 38CrMoAlA, surface hardness: HV950-1050, depth 0.5-0.7mm 3). Heating: Adopt multiple step format electric heating. All zones are cast copper heater. The total heating power is 16KW and the max heating capacity every section can reach
4). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
5). Length: 120*7=840mm
Scope of supply
|1||High speed mixer||set||1||5L|
|2||Twin screw extrusion system||set||1|
|2.2||SJ-20 Twin screw extruder||set||1||5.5kw, 40:1|
|2.3||Vacuum venting system||set||1||0.75kw|
|2.4||Water cycling system||set||1||0.55kw|
|2.5||Manual screen changer||set||1|
|4||Water stand auxiliary system||set||1|
|4.2||Water trough||set||1||1 M|
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

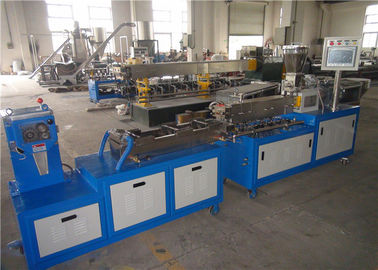

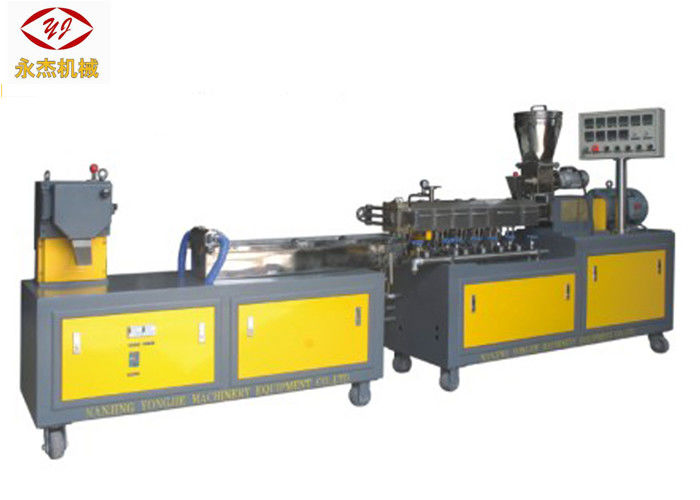

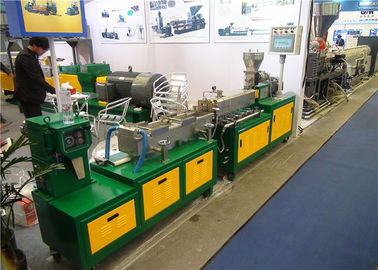

Photo of SJSL20 lab mini extruder
Main technical data of various model of twin screw extruder pelletizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
