Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||Formula Testing Etc|
|Barrel Diameter:||22mm||Screw Diameter:||21.7mm|
|Motor:||5.5kw||Barrel Section:||7 Sections|
SJSL20 2-15kg Laboratory Twin Screw Extruder Filler Masterbatch Testing Machine
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
Output:20-70kg/h according to different material, formula and technology of process etc.
Reduction ratio: i = 2.5:1
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel diameter:22mm, The first section works for main feeding, the fifth section is set up for venting naturally, and the ninth section is set up for vacuum venting and others are blocked.
Water stand pelletizing auxiliary machine system
1). It’s made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100;
1). Width=280mm, depth=200mm, Length=1000mm
2). Three rubber roll brackets.
1). Power: 0.26KW, Aluminum fan
2). Made of stainless steel.
1). Power: 0.75kw,
Inverter speed regulation

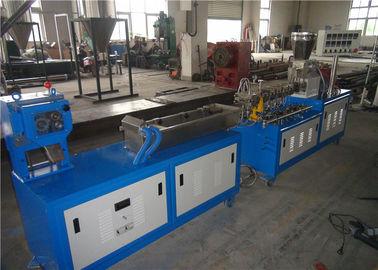

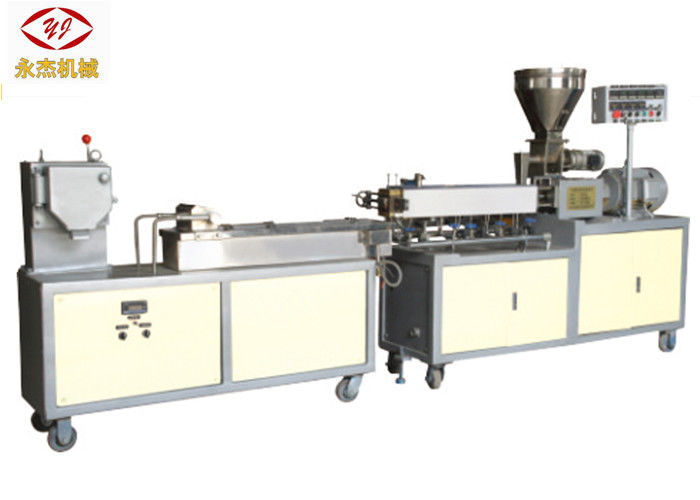

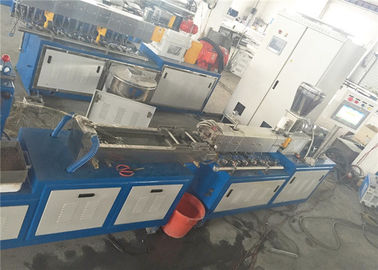

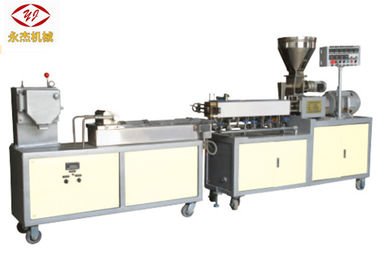

Photo of SJSL20 lab mini extruder
Main technical data of various model of twin screw extruder pelletizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
