Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | Recycled PET Flake Less Than 20mm |
|---|---|---|---|
| Moisture: | <1% | IV Loss: | 5% |
| Screw Diameter: | 62.4mm | Motor: | 90kw |
| Super Vacuum: | 5.5kw With Two Ports | Capacity: | 200-300kg/h |
Automatic 40:1 Polymer Extrusion Machine Twin Screw Extruder Plastic Pellet Making Machine
Characteristics of twin screw extruder
The screw arrangement are adopted “toy bricks” principle, which assembly according to different machine L/D, different feeding way, different barrel and screw combination, different screen changing and cutting way, different electrical control mode, etc. it meets the features of material and technological process. Give consideration to the plastic universality commonality and appropriability.
Quick details
Power:90kw,others available
Screw diameter:62.4mm
Barrel diameter:63mm
L/D:40:1
Output:200-300kg(500-600kg by our SJSL95)
Cutting way: water bath cooling system
Warranty:one year
Lead time:45 days after deposit
Revolution speed:300rpm
Revolution ratio:5:1
Special design : first weak shear of the screw , second increased vacuum system, lower revolution speed of screw as way to maximum decrease the loss of IV of pet
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 1.1kw |
| 1.2 | SJ-65BTwin screw extruder | set | 1 | 90kw, 36:1 |
| 1.3 | Special Vacuum venting system for PET | set | 1 | 5.5kw, two ports on the fifth and seventh barrel |
| 1.4 | Water cycling system | set | 1 | 0.55kw |
| 1.5 | Automatic screen changer | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | PID |
| 3 | Water-strand auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Water trough | set | 1 | 4M |
| 3.3 | Dryer | set | 1 | 2.2kw |
| 3.4 | Pelletizer | set | 1 | 300kg/h, 4kw |
| 4 | Documents | set | 1 |

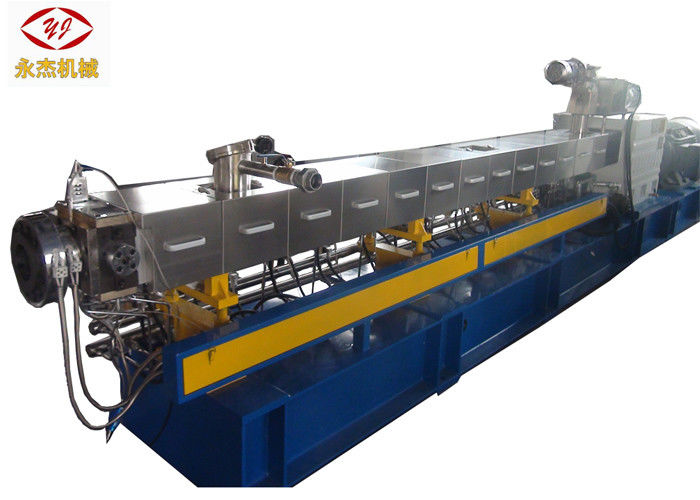

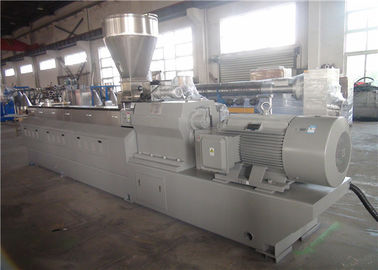

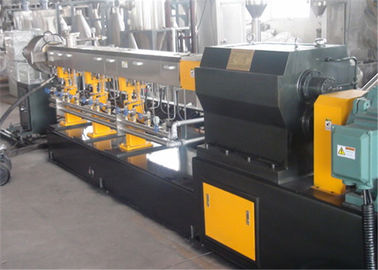

Photo of SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
Main advantages of our recycled PET flake granulating machine
1. Lower IV loss due to good screw array and wear shear of it
2. Clean and white color
