Recycling PE PP YD180 Single Screw Extruder Plastic Pelletizing Machine
Characteristic of single screw extruder
1. High precision gear box with ability of over loading, smooth transmitting, lower noise
2. Newly designed barrel and screw to ensure well-distributed of material in melting, low melt temperature and high production
3. The screw is made with standard and high precision during process. After treated by gases and nitride the barrel, it possesses strong wear- and corrosion- resisting. For special material, double metals are available for barrel etc.
4. The barrels cooled by lower with super mute working status, less maintenance
5. PID temperature is controlled by Japan temperature control meter with stable and accurate temperature.
6. Two type of die head design: manual and hydraulic type for easy changing and time saving.
7. ABB or other famous brand Inverter speed control for more stable and good performance of machine and easier operation
Working for plastic raw material dye, recycling plastic pellets from film, flake, scrap and engineering plastics, such as ABS, PC, POM, PP, PE, ABS/PC, PET etc.
Main technical parameter of YD-180 production line
1. Single screw main machine:
1) Screw diameter: ￠180mm, L/D: 28:1,
2) The screw are connected to the gear box through involute spline;
3) The screw material: 38CrMoALA, nitrogen hardening. The hardness of the surface is HV
950-1050, deep layer: 0.5-0.7 mm; the barrel material: 38CrMoALA,
nitrogen hardening. , the hardness of the surface is HV 950-1050; deep
layer: 0.5-0.7 mm;
4) Main motor power: 100 kw, (A/C) speed is regulated by Italy regulator; screw speed
5) Barrel heating: cast- Aluminum heater. Heating power: 60 kw, divided to 7 zones, The
machine head is a zone and others are 8 zones. Cooling by blowing way;
6) Adopted 250 model gear box. The speed is controlled by main transmission box with high
torque, and hard gear face, using SKF imported bearing, material of the
gear axial is 20CrNiMo, by immerse carbon and heating treated,
7) Adopted automatic screen changer, operating easily;

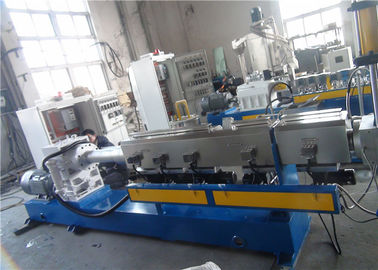

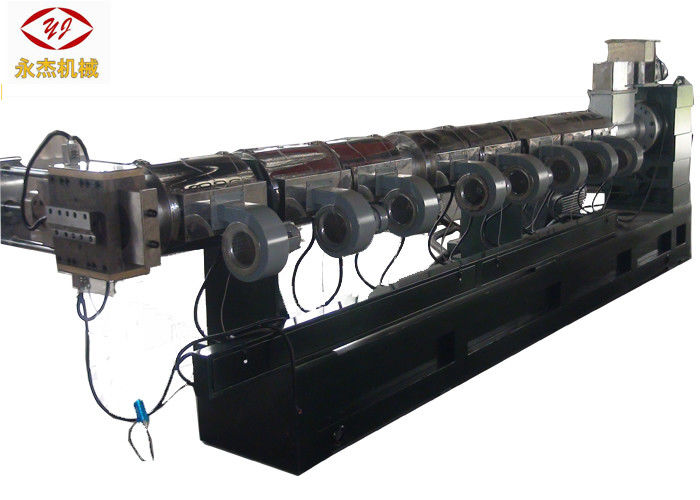

Photo of Recycling PE PP YD150 Single Screw Extruder Plastic Pelletizing Machine
Main technical data of various model of single screw extruder palstic pelleitizing machine
||Screw Diameter (mm)
||Main motor power(Kw)
||screw speed n(r/min)
||Typical production capacity (kg/h)
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
