Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Single Screw Extruder | Application: | PP PE Etc |
|---|---|---|---|
| Warranty: | One Year | Screw Diameter: | 220mm |
| Motor: | 280kw | Capacity: | 800-1000kg Per Hour |
| Material: | 38CrMoAlA | Central Height Of Screw: | 900 Mm |
YD220 Underwater PP PE Waste Material Pelletizing Machine Single Screw Extruder Machine
Characteristic of Yongjie single screw extruder
1. High precision gear box with ability of over loading, smooth transmitting, lower noise
2. Newly designed barrel and screw to ensure well-distributed of material in melting, low melt temperature and high production
3. The screw is made with standard and high precision during process. After treated by gases and nitride the barrel, it possesses strong wear- and corrosion- resisting. For special material, double metals are available for barrel etc.
4. The barrels cooled by lower with super mute working status, less maintenance
5. PID temperature is controlled by Japan temperature control meter with stable and accurate temperature.
6. Two type of die head design: manual and hydraulic type for easy changing and time saving.
7. ABB or other famous brand Inverter speed control for more stable and good performance of machine and easier operation
Typical Application
Working for plastic raw material dye, recycling plastic pellets from film, flake, scrap and engineering plastics, such as ABS, PC, POM, PP, PE, ABS/PC, PET etc.
Main technical parameter of YD-220 production line
| No | Contents | Unit | Quantity | Marks |
| 1 | Screw machine | set | 1 | 2.2kw |
| 2 | Single screw extrusion system | set | 1 | 280kw,32:1 |
| 2.1 | Feeding system | set | 1 | 3KW |
| 2.2 | YD-220 single screw extruder | set | 1 | |
| 2.3 | Automatic screen changer | set | 1 | 1.5KW |
| 3 | Electric cabinet | set | 1 | |
| 4 | Water-ring auxiliary system | set | 1 | |
| 4.1 | Die head | set | 1 | |
| 4.2 | Face cutter | set | 1 | 2.2kw |
| 4.3 | Dehydrator | set | 1 | 11kw |
| 4.4 | Vibrating sieve | set | 1 | 0.75kw |
| 5 | Underwater pelletizing auxiliary machine system | set | 1 | UW1000 |
| 5.1 | Dump valve system | set | 1 | 4kw |
| 5.2 | Cutting head | set | 1 | |
| 5.3 | Cutting knife system | set | 1 | 7.5KW |
| 5.4 | Pneumatic valve | set | 1 | |
| 5.5 | Dehydrator | set | 1 | 11kw |
| 5.6 | Electric control system | set | 1 | PLC |
| 5.7 | vibrator | set | 1 | 0. 75 KW |
| 6 | Free spare parts | set | 1 |

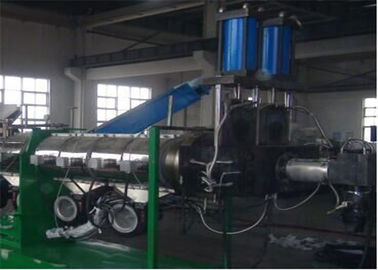

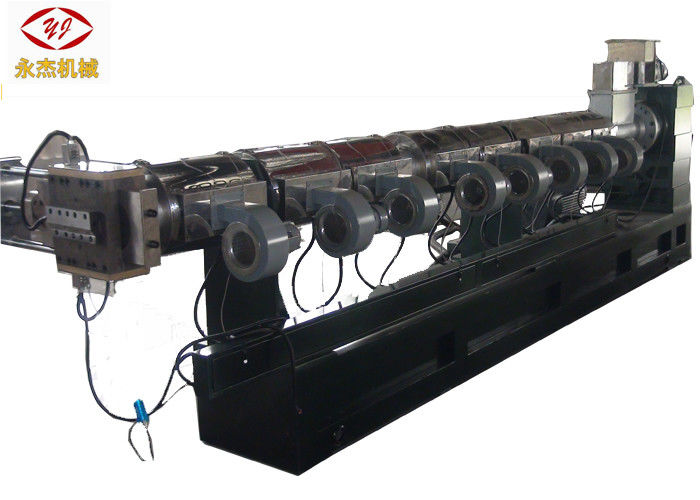

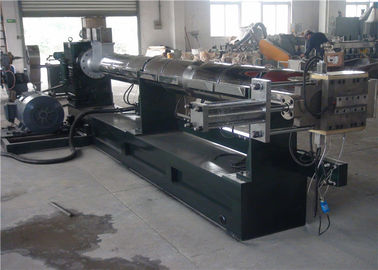

Photo of single screw extruder plastic pellet mahcine
Main technical data of various model of single screw extruder palstic pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | Main motor power(Kw) | screw speed n(r/min) | Typical production capacity (kg/h) |
| YD-30 | 30 | 25-33 | 4/5.5 | 3-100 | 2-15 |
| YD-45 | 45 | 20-32 | 5.5/7.5 | 5-84 | 5-40 |
| YD-60 | 60 | 20-32 | 17.5/22 | 5-84 | 15-80 |
| YD-90 | 90 | 20-33 | 30/37 | 5-84 | 25-120 |
| YD-100 | 100 | 20-33 | 37/45 | 5-84 | 45-150 |
| YD-120 | 120 | 20-33 | 45/55 | 5-84 | 75-200 |
| YD-150 | 150 | 20-33 | 75/90 | 5-84 | 150-300 |
| YD-180 | 180 | 20-33 | 90/132 | 5-84 | 200-400 |
| YD-200 | 200 | 20-33 | 110/160 | 5-84 | 250-500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
