Payment & Shipping Terms:
|Screw Design:||Twi-single Screw Extruder||Application:||Pvc Pellets|
|Warranty:||One Year||Color:||Any Color|
|Capacity:||300-500kg Per Hour||Cutting Way:||Two Stage Air Cooling Die Face|
Two Stage Plastic Extruder Machine ZL65-150 PVC Pellet Making Machine 300kg/h
Power:75kw for twin screw exturder, 45kw for single screw extruder
Screw diameter:62.4mm for twin screw extruder, 150mm for single screw submachine
L/D:36:1 & 7:1
Output:200-350kg/h according to different material, formula and technology of process etc.
Cutting way: air cooling die face
Lead time:45 days after deposit
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Transmission gear: Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo). It had been treated by cementation heat process, the precision grade can reach6th. It guarantee the tooth surface is high speed, over loading, low noise and high torque.
Drive bearing: The brand of axletree: NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.
Scope of supply
|1||Twin screw extrusion system||set||1|
|1.2||SJ-65Twin screw extruder||set||1||75kw, 40:1|
|1.3||Vacuum venting system||set||1||2.2kw|
|1.4||Water cycling system||set||1||0.55kw|
|2||Single screw extrusion system||set||1|
|2.1||YD-150 single screw extruder||set||1||45kw, 9:1|
|2.2||Automatic screen changer||set||1||1.5kw|
|4||Air-cooling auxiliary system||set||1|

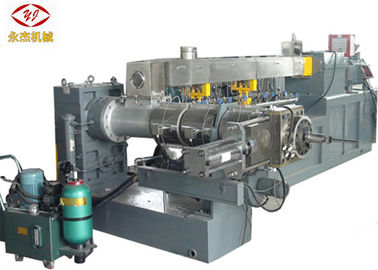

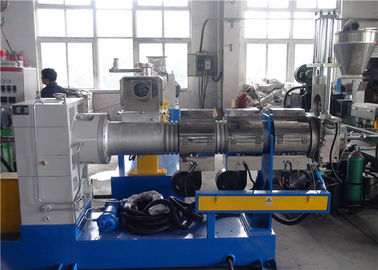

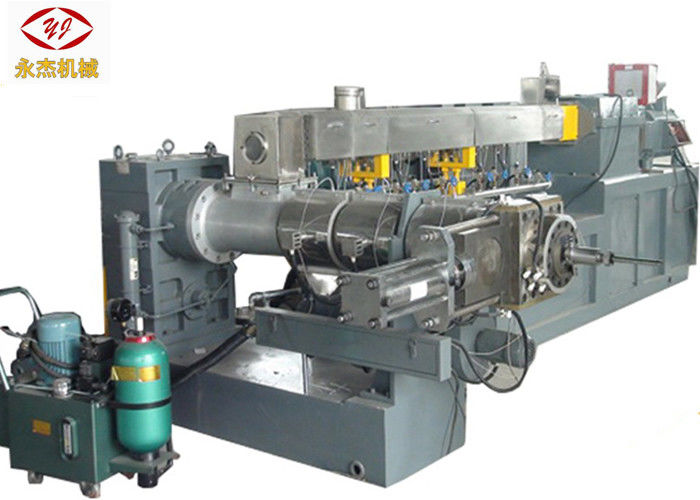

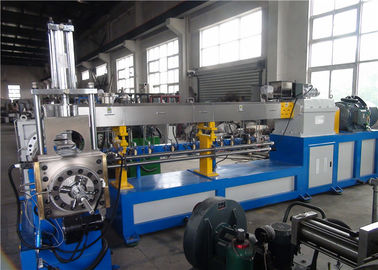

Photo of pvc pelletizing machine plastic extrustion machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
