Payment & Shipping Terms:
|Screw Design:||Twi-single Screw Extruder||Application:||Carbon Black Master Batch|
|Barrel Material:||W6Mo5Cr4V2||Screw Material:||W6Mo5Cr4V2|
|Capacity:||500-700kg/h||Cutting Way:||Water Ring Die Face|
High Efficiency Carbon Black ZL75-75 Twin-Twin Two Stage Extruder One Year Warranty
Power:132kw for twin screw exturder main machine, 55kw twin screw extruder submachine
Screw diameter:71mm for twin screw extruder, 71mm twin screw extruder submachine
L/D:48:1 & 9:1
Output:500-700kg/h according to different material, formula and technology of process etc.
Cutting way:water ring
Lead time:45 days after deposit
Technical parameter of carbon black plastic granulating production line
Dynamic data: low voltage power supply standard(DIN/IEC38): 380ｖ-5+10%, 50Hz-/+2% phase/N/PE50Hz.
control voltage standard (transformed): 220V AC( contactor, meter, electromagnetic valve ).
Temperature: 10-40℃.Humidity: max.80%, no condensation.
Total wattage:～300 KW.
Water requirements: circulating water: The cooling recycling water in the barrel must be non-inoic soft water (distilled water).
Water sources: 1. Creating a pool (4-6㎥) outside the workshop, using water pump to make recycling water.
2. Using tap water directly, but it’s wasteful.
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.

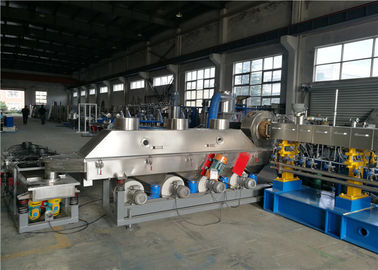

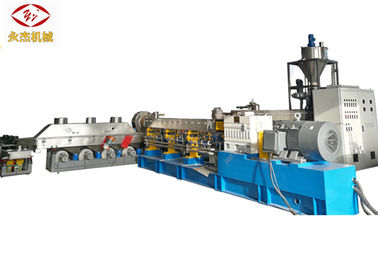

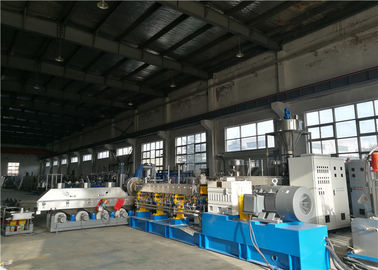

Photo of two stage cable material plastic pelletizing machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
