Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Single Screw Extruder | Application: | Waste Film Material Etc |
|---|---|---|---|
| Cutting Way: | Water Ring Die Face | Screw Diameter: | 60mm |
| Motor: | 25kw | Capacity: | 30-50kg Per Hour |
| Material: | 38CrMoAIA | Central Height Of Screw: | 900 Mm |

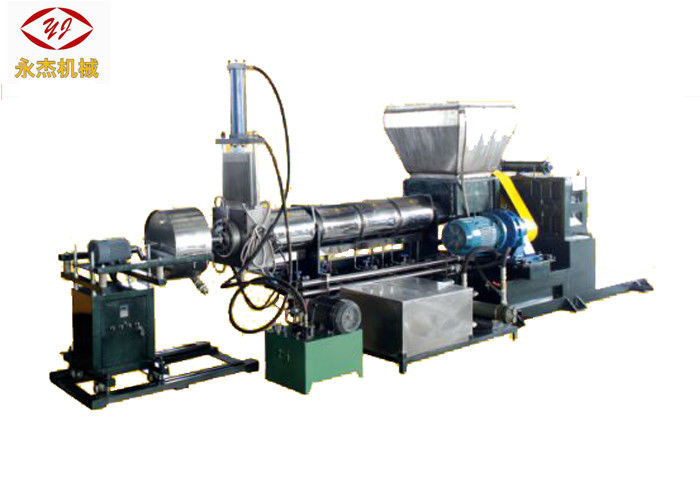

30-50kg/h YD60 Single Screw Extruder Machine Plastic Waste Recycling Granulator Machine
Characteristic of Yongjie single screw extruder
1. High precision gear box with ability of over loading, smooth transmitting, lower noise
2. Newly designed barrel and screw to ensure well-distributed of material in melting, low melt temperature and high production
3. The screw is made with standard and high precision during process. After treated by gases and nitride the barrel, it possesses strong wear- and corrosion- resisting. For special material, double metals are available for barrel etc.
4. The barrels cooled by lower with super mute working status, less maintenance
5. PID temperature is controlled by Japan temperature control meter with stable and accurate temperature.
6. Two type of die head design: manual and hydraulic type for easy changing and time saving.
7. ABB or other famous brand Inverter speed control for more stable and good performance of machine and easier operation
Typical Application
Working for plastic raw material dye, recycling plastic pellets from film, flake, scrap and engineering plastics, such as ABS, PC, POM, PP, PE, ABS/PC, PET etc.
Main technical parameter of YD-60 production line
d. Barrel material: 38CrMoALA;
(2). Electric Control System:
a Temperature control system with dual channel; intelligence testing; (heating/cooling)
b Current of the main drivers are interlocked with main machine; which realizes instantaneous stop for protection;
c Heating protection component and main AC contactor of the main drivers are used with SIEMENS brand products;
d Buttons and signal indicators are all used with brand products;
e The main machine has the function of interlocking protection;
The machine is equipped with testing instrument, protecting the main machine from over-charging;
The machine die is equipped with melt-pressure and melt-temperature testing instrument, protecting the main machine from over-pressuring;

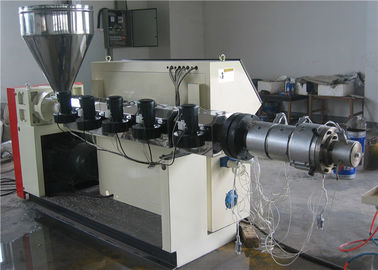

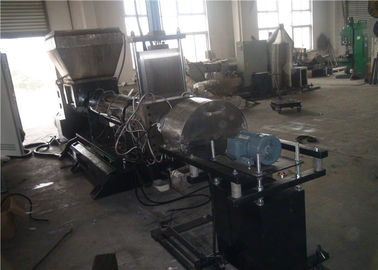

Photo of single screw extruder plastic pellet mahcine
Main technical data of various model of single screw extruder palstic pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | Main motor power(Kw) | screw speed n(r/min) | Typical production capacity (kg/h) |
| YD-30 | 30 | 25-33 | 4/5.5 | 3-100 | 2-15 |
| YD-45 | 45 | 20-32 | 5.5/7.5 | 5-84 | 5-40 |
| YD-60 | 60 | 20-32 | 17.5/22 | 5-84 | 15-80 |
| YD-90 | 90 | 20-33 | 30/37 | 5-84 | 25-120 |
| YD-100 | 100 | 20-33 | 37/45 | 5-84 | 45-150 |
| YD-120 | 120 | 20-33 | 45/55 | 5-84 | 75-200 |
| YD-150 | 150 | 20-33 | 75/90 | 5-84 | 150-300 |
| YD-180 | 180 | 20-33 | 90/132 | 5-84 | 200-400 |
| YD-200 | 200 | 20-33 | 110/160 | 5-84 | 250-500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
