Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

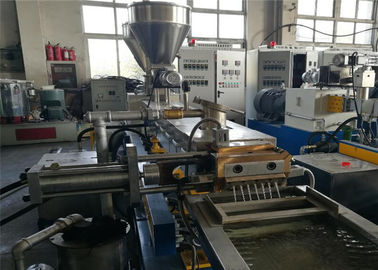

Water strand plastic pelletizing machine application
Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.
Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.
Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.
Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.
Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.
Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc
Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc
The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.

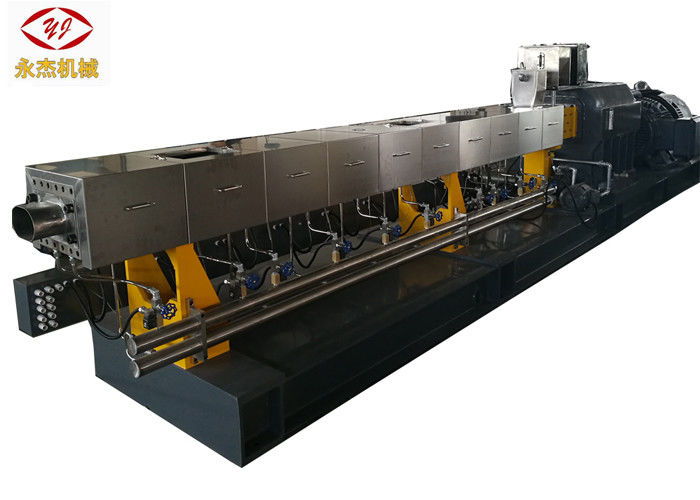

Quick details of the machine
Barrel&screw material:W6Mo5Cr4V2 high speed tool steel
Length of barrel:360*9 section=3240mm
Special screw array with wear shear of flake material, super power vacuum system to reduce IV loss maximumly.
1). Structure: The first section works for main feeding, the second section is for natural vent, and the fifth and the seventh section is set up for vacuum venting, the others are blocked.
2). Material: The material of the barrel is made of 45＃forged steel with the linear material Cr26 inside that smooth and abrasion resistant ( Integral linear section, a complete “∞”). The hardness is HRC60-64.
3). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 120kw and the max heating capacity every section can reach
4). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
5). Length: 520*9=4680mm
Scope of supply:
|1||Screw feeding machine||set||1||2.2kw|
|2||Twin screw extrusion system||set||1|| |
|2.1||Feeding system with forced feeder||set||1||4kw,3kw|
|2.2||SJ-135Twin screw extruder||set||1||355kw,36:1|
|2.4||Vacuum venting system||set||1||3+5.5+11kw|
|2.5||Water cycling system||set||1||3kw|
|2.6||Automatic hydraulic screen changer||set||1||2.2kw|
|3||Electric cabinet||set||1||SIEMENTS PLC+HMI|
|4||Water strand auxiliary system||set||1|| |
|4.1||Die head||set||1|| |
|4.2||Water trough||set||1||5M, 11kw|
|4.6||One stage air transmission system||set||1||5.5kw|
|5||Spare parts||set||1|| |
