PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw

China PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw supplier
PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw supplier PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw supplier PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw supplier

Large Image :  PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL75D

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Plastic Type: Pet Puffed Food Protein
Warranty: One Year Screw Diameter: 71mm
Screw & Barrel Material: W6Mo5Cr4V2 L/D: 52:1
Cutting Type: Water Ring Die Face Capacity: 2000kg/h

PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw


Quick details

Power:250/280/315kw option according to required output

Motor: AC motor, Siemens Beide

Screw diameter:71mm

Barrel diameter: 71.8mm

L/D:48/52

Output:2000-2500kg/h according to different material, formula and technology of process etc.

Cutting way: our water ring & air cooling plastic pelletizing machine are widely used for PE PP filler masterbatch

Warranty:one year

Lead time:45 days after deposit



SJSL75D Water ring pelletizer system

1 Die head

Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.

2 Cutter with cover

1).Electromagnetic frequency control speed;

2). Motor power: 2.2kw.

3 Centrifugal dehydrator

1). Stainless steel main body, 15kw motor power.

4 Vibrating sieve

1).One sets of stainless steel vibrator sieve with two motors 0.375kw/set, 0.75kw in total, 3M long.

5 Product silo

1).It consists of stainless steel cyclone separator with brackets, 7.5KW fan, T-joint and sending pipes

(2).Silo capacity:1.5tons

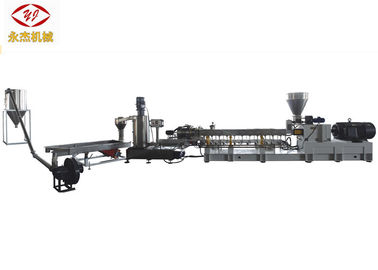

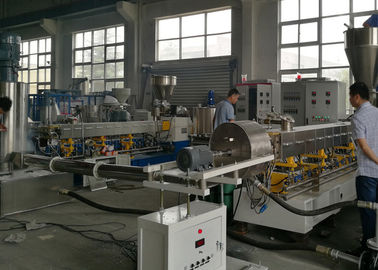

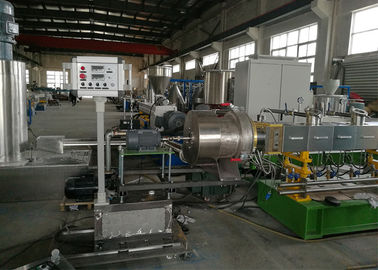

Photo of SJSL75D PE PP filler masterbatch plastic pelletizing machine (more models are available)

PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw



PE PP Black Color Masterbatch Production Twin Screw Extruder 315kw



Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.



Package of our plastic pellet machine ( sea worthy film or wooden box according to requirements)

PE PP Filler Masterbatch Plastic Pelletizing Equipment Water Ring Cutting Way 2500kg/H
