Product Details:
Payment & Shipping Terms:
|
| Plastic Type: | PP/PE/PVC/POM Etc+wood Fiber | Warranty: | One Year |
|---|---|---|---|
| Overseas Engineers: | Available For Installation And Comissioning | Screw Diameter: | 71mm |
| Screw & Barrel Material: | W6Mo5Cr4V2 | Motor: | 160kw |
| Cutting Type: | Air Cooling Die Face | Capacity: | 400-500kg/h |
WPC Filler Masterbatch Air Cooling Die Face Double Screw Extruder Plastic Granules Machine
Nanjing Yongjie started to make corn starch, pla pellets, biodegradable plastic pellets since 2001,our twin screw extruders are widely used for enforcing modification, degradable master batch, anti-flame master batch etc also.
Quick details of machine
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 1.5kw |
| 1.2 | SJ-75B Twin screw extruder | set | 1 | 160kw, 40:1 |
| 1.3 | Water cycling system | set | 1 | 0.55kw |
| 2 | Electric cabinet | set | 1 | |

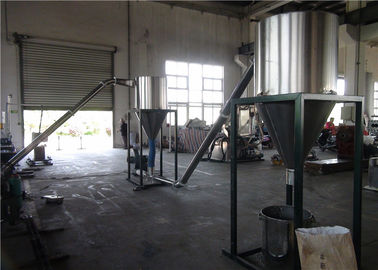

| 3 | Air-cooling auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Face cutter | set | 1 | 1.5kw |
| 3.3 | Two-stage conveying system | set | 1 | 4kw/set, 8kw totally |
| 3.4 | Product silo | set | 1 | 4kw |
| 4 | Documents | set | 1 |
Free spare parts:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Screw elements | set | ~500mm | |
| 2 | Output and input shaft oil seals | piece | 3 | |
| 3 | Venting room seal ring | piece | 1 | |
| 4 | Asbestos gloves | pairs | 2 | |
| 5 | Allen key (inner) | set | 1 | 5 pieces |
| 6 | Allen key (outer) | set | 1 | 3 pieces |
| 7 | Flat, Cross Screw driver | piece | 1 each | 2 pieces |
| 8 | Copper bar ∮32*200 | piece | 1 | |
| 9 | Screw hoisting ring | piece | 2 | |
| 10 | Blade | piece | 30 |

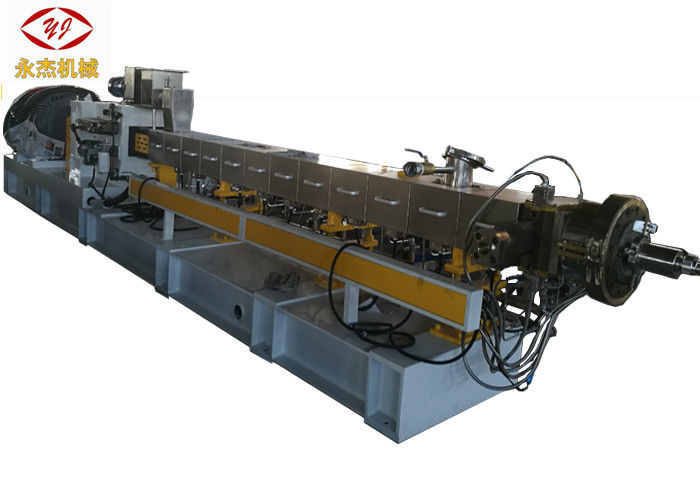

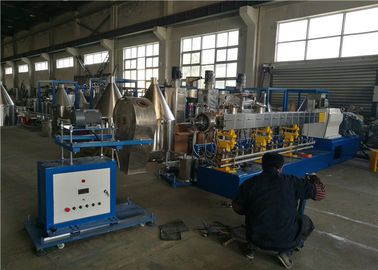

Photo of machine
Main models of our twin screw extruder
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. How long is the warranty?
We can offer one-year warranty for the whole machine.
