Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||PLA PE PP ABS EVA|
|Warranty:||One Year||Overseas Engineers:||Available|
PLA PE PP ABS EVA Water Strand Polymer Extruder Plastic Pellet Making Machine
Water strand plastic pelletizing machine application
Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.
Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.
Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.
Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.
Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.
Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc
Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc
The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.
Screw speed:0-600rpm, speed ratio:3:1
Direction of rotation: Co-rotating
Screw&elements: W6Mo5Cr4V2(6542) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel diameter: ￠63mm
2). Structure: The first section works for main feeding, the fifth section is set up for venting naturally, and the Ninth section is set up for vacuum venting and others are blocked.
3). Material: The material of the barrel is made of 38CrMoAl nitriding steel.
4). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 60kw and the max heating capacity every section can reach 500℃.
5). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

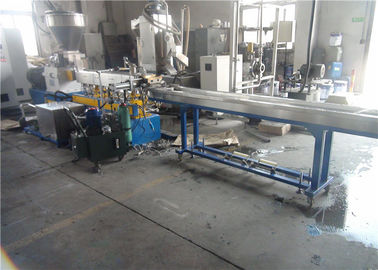

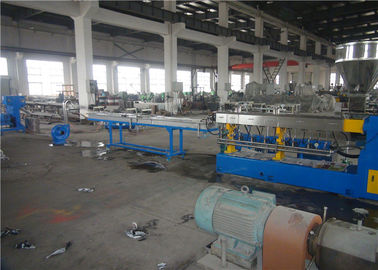

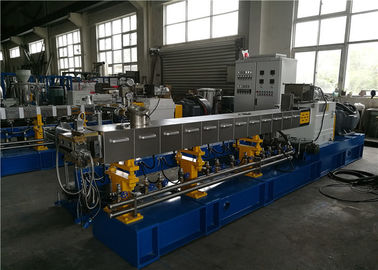

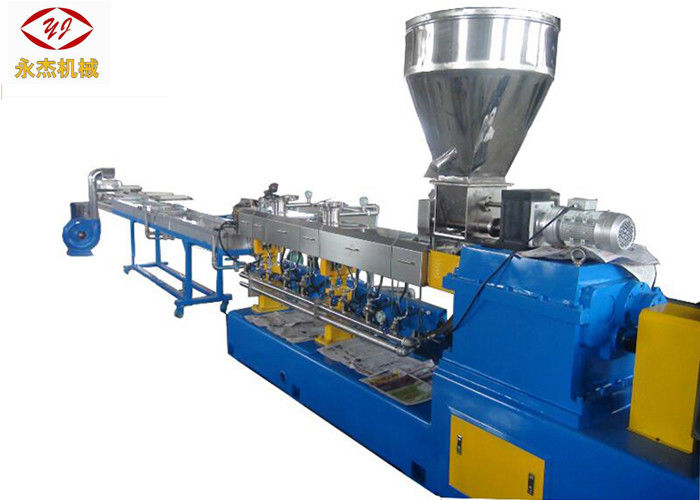

Photos of Water Strand Plastic Pelletizing Machine
Free spare parts:
|2||Output and input shaft oil seals||piece||3|
|3||Venting room seal ring||piece||1|
|5||Allen key (inner)||set||1||5 pieces|
|6||Allen key (outer)||set||1||3 pieces|
|7||Cross, Flat screw driver||piece||1 each||2 pieces|
|8||Screw hoisting ring||piece||2|
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
