Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency

China Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency supplier
Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency supplier Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency supplier Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency supplier

Large Image :  Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL65B

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD35000-42000/set
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Pet Flake Less Than 20mm
Overseas Engineers: Available For Installation And Comissioning Screw Diameter: 62.4mm
Screw Material: W6Mo5Cr4V2 Motor: 92kw
Rpm: 300/600 Capacity: 300kg/h

300kg/h SJSL65B Twin Screw Extruder Recycling PET Machine PET Pelletizing Machine



Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.



Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.



Quick details of the machine

Screw diameter:64.2mm

Barrel diameter:63mm

Power:90kw

Barrel&screw material:W6Mo5Cr4V2 high speed tool steel

L/D:36:1

Length of barrel:240*9 section=2160mm

Gear box input speed:1480rpm, output 300-500rpm

Reduction ratio:3:1

Special screw array with wear shear of flake material, super power vacuum system to reduce IV loss maximumly.

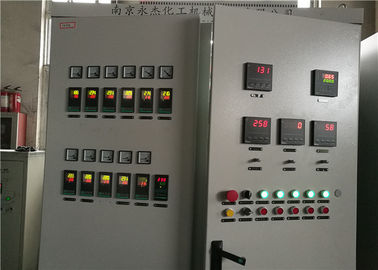

Interlocked control

1). The extruder motor is set up the current overload to achieve chain shutdown protection with electric control cabinet.

2). The control system of main machine motor is interlocked with control system of feeder motor as a way of protection mutually.

3). Transmission gearbox and lubrication system are interlocked for protection.

4). The extruder is set up the pressure overload to achieve chain shutdown protection with electric control cabinet.

 5). The main motor is connected with the nylon pin of transmission gearbox so as to cut off the nylon pin when torque is overload



Main technical data of various model of twin screw extruder pelletizing machine



Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

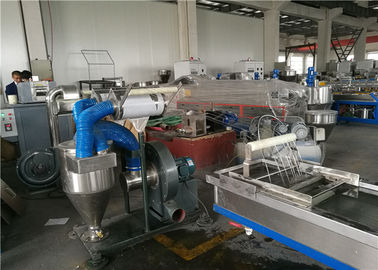

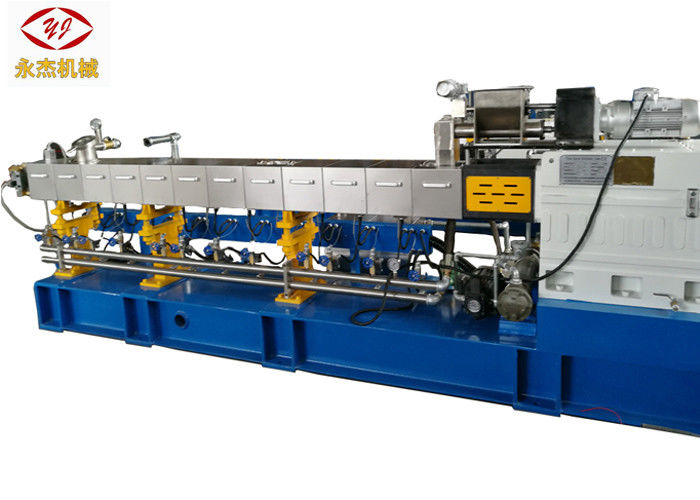

Photos of 300kg/h SJSL65B Twin Screw Extruder Recycling PET Machine PET Pelletizing Machine

Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency



Interlocked Control PET Pelletizing Machine 300/600 Rpm Energy Efficiency



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
