Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving

China Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving supplier
Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving supplier Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving supplier Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving supplier

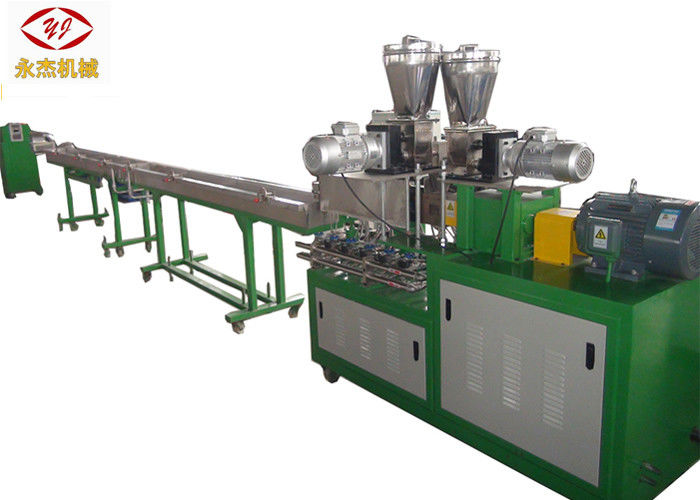

Large Image :  Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL36

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Plastic Pellets
Overseas Engineers: Available For Installation And Comissioning Barrel Diameter: 35.6mm
Motor: 22kw Capacity: 10-20kg/h
L/D: 36:1 Gearbox Speed: 300rpm

10-20kg/h Double Screw Extruder PET Flake Granules PET Pelletizing Machine



Quick details

Diameter:35.6mm

L/D:36:1

Direction of rotation: Co-rotating

Screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.

Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process, HRC28~32.

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

1). Structure: The first section works for main feeding, the fifth section is set up for venting naturally and the ninth section is set up for vacuum venting, the others are blocked.

2). Material: The material of the barrel is made of 45forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth and abrasion resistant. The hardness is HRC60-64.

3). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 25KW

and the max heating capacity every section can reach

500℃.

4). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.

The brand of electromagnetic valve is DANFOSS.



World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

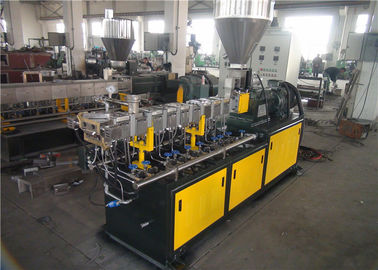

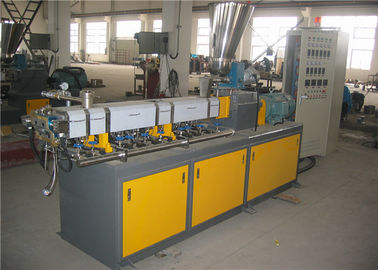

Photo of SJSL36 lab mini extruder plastic pelletizing machine

Double Screw Extruder PET Pelletizing Machine 10-20kg/H Capacity Energy Saving



Main technical data of various model of twin screw extruder pelletizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
