Product Details:
Payment & Shipping Terms:
|
| Plastic Type: | PP/PVC/WPC/PE/ABS/XPS/Polystyrene Etc | Application: | Plastic Pellets |
|---|---|---|---|
| Warranty: | One Year | Screw Diameter: | 71mm |
| Screw & Barrel Material: | W6Mo5Cr4V2 | Motor: | 280kw |
| Cutting Type: | Air Cooling Die Face | Capacity: | 600kg/h |

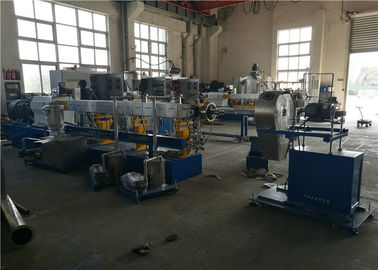

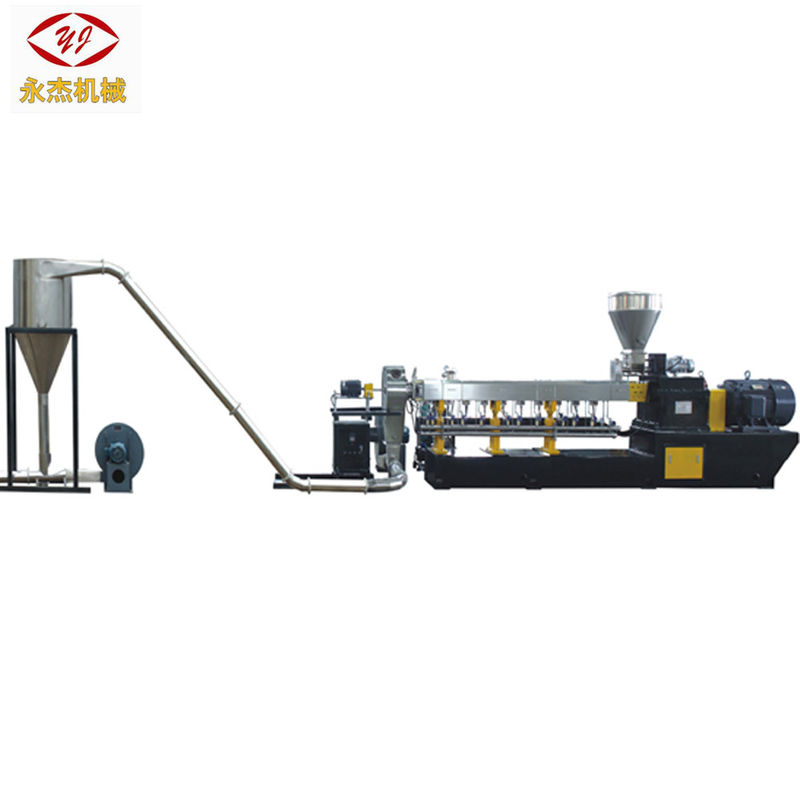

WPC extruder wood plastic pelletizing machine twin screw extruder
Nanjing Yongjie started to make corn starch, pla pellets, biodegradable plastic pellets since 2001,our twin screw extruders are widely used for enforcing modification, degradable master batch, anti-flame master batch etc also.

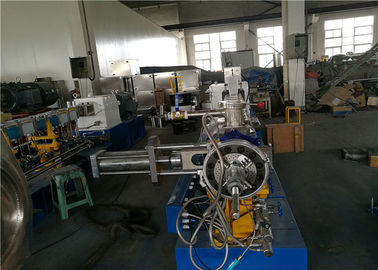

Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
WPC granules for outdoor floor,pavilion, wooden bench, armrest, trash cans, etc
Scope of supply:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 2.2kw |
| 1.2 | SJ-95Twin screw extruder | set | 1 | 280kw, 40:1 |
| 1.3 | Water cycling system | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Air-cooling auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Face cutter | set | 1 | 2.2kw |
| 3.3 | First air conveying system | set | 1 | 11kw |
| 3.4 | First air conveying system | set | 1 | 5.5kw |
| 3.5 | Product silo | set | 1 | 5.5kw |
| 4 | Documents | set | 1 |
Free spare parts:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Screw elements | set | ~500mm | |
| 2 | Output and input shaft oil seals | piece | 3 | |
| 3 | Venting room seal ring | piece | 1 | |
| 4 | Asbestos gloves | pairs | 2 | |
| 5 | Allen key (inner) | set | 1 | 5 pieces |
| 6 | Allen key (outer) | set | 1 | 3 pieces |
| 7 | Flat, Cross Screw driver | piece | 1 each | 2 pieces |
| 8 | Copper bar ∮32*200 | piece | 1 | |
| 9 | blade | piece | 30 |
Main model parameter
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
