|Screw Design:||Twin Screw Extruder||Application:||PLA Biodegradable Pellets|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
PLA Biodegradable Plastic Pellet Machine Air Cooling Plastic Extrusion Machine
Power:75/90/110/132kw option according to required output
Screw material: W6Mo5Cr4V2 (6542＃) high speed tool steel
Barrel diameter: 63mm
Barrel material:45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside
Output:200kg/h according to different material, formula and technology of process etc.
Cutting way: air cooling die face plastic pellet machine is used for wpc plastic pellet
Lead time:45 days after deposit
Main parameter of machine parts
|1||High speed mixer||set||1||200L|
|2||Screw loader machine||set||1||1.5kw|
|3||Twin screw extrusion system||set||1|
|3.2||SJ-65 Twin screw extruder||set||1||75kw, 48:1|
|3.3||Vacuum venting system||set||1||2.2kw|
|3.4||Water cycling system||set||1||0.55kw|
|3.5||Automatic screen changer||set||1||1.5kw|
|5||Air-cooling auxiliary system||set||1|
|5.3||two-stage conveying system||set||1||4kw+4kw|
World famous brand of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is Japanese joint venture ABB
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve adopt Denmark DANFOSS product.

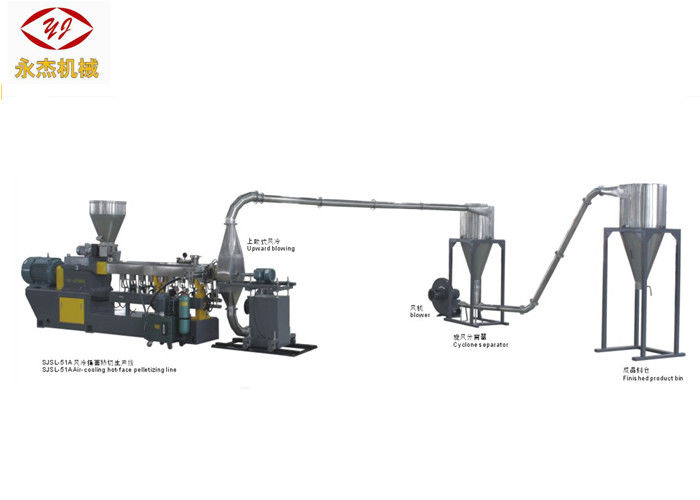

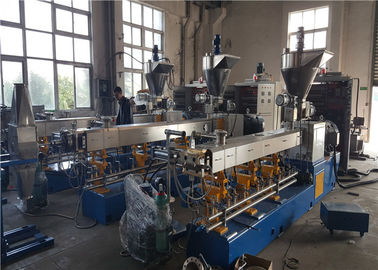

Photo of Air Cooling Plastic Extrusion Machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
How to choose machine for plastic pellet?
1. Just tell us your rough formula, like 50% PE +50% wood fiber + additives etc.
2. Your expected output per hour of the mahcine
Package of machine
1. Sea worthy of film or bubble film
2. Wooden box or frame according to customer's requirements
