Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||LLDPE LDPE HDPE|
|Overseas Engineers:||Available For Installation And Comissioning||Barrel Diameter:||71.8mm|
|Motor:||132kw||Dump Valve System:||2.4kw|
|L/D:||44 Or 48:1||Dehydrator:||5.5kw|
LLDPE LDPE HDPE Underwater PLC Twin Screw Extruder Plastic Extrusion Machine
Nanjing Yongjie underwater plastic pellet machine is the special and innovative technique for the production of
hgih-quality plastics pellets, which have low viscosity and high elasticity, or have special shape, such as micro-particle.
Typical Application:1. Polyolefine:LLDPE, LDPE, HDPE, PP, EPDM...2. Styrolpolymere:PS, ABS... 3. Acrylharze:PMMA...4. Polyacetale:POM...5. Polycarbonate:PC,PET,PBT, PE...
6. Polyamide:PA6,PA6.6,PA11,PA12...7. Thermoplastics Elastomer:TPE,TPV,TPR,TPEE...8.Hot melt adhesives: TPU, EVA, PA, PP
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
L/D:44 or 48:1
Output:500-600kg/h according to different material, formula and technology of process etc.
Reduction ratio: i = 2.5:1
Main parts of machine
|1||Twin screw extrusion system||set||1|
|1.2||SJ-75 Twin screw extruder||set||1||132kw, 40:1|
|1.3||Vacuum venting system||set||1||2.2kw|
|1.4||Water cycling system||set||1||0.55kw|
|1.5||Automatic screen changer||set||1||1.5kw|
|3||Underwater pelletizing auxiliary machine system||set||1|
|3.1||Dump valve system||set||1||2.4KW|
|3.3||Cutting knife system||set||1||4KW|
|3.8||One stage blowing transmitting system||set||1|
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

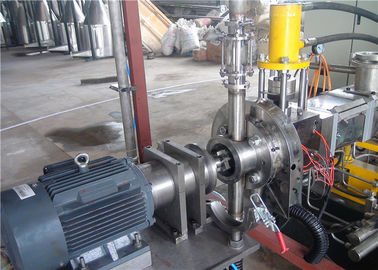

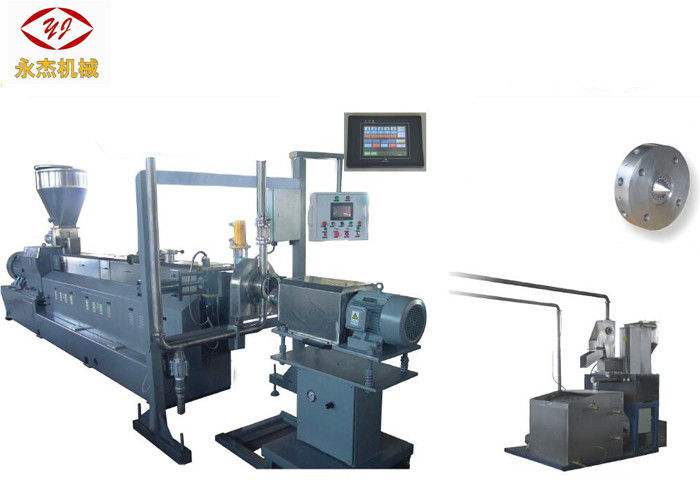

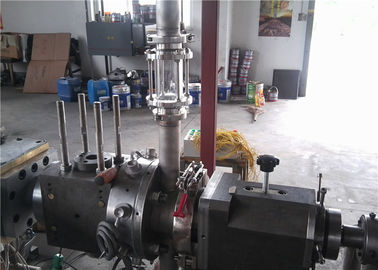

Photo of TPU TPE TPR EVA Underwater Plastic Granules Pelletizing Machine
Main technical data of various model of twin screw extruder pelletizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
