Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | PE PP Black Masterbatch |
|---|---|---|---|
| Warranty: | One Year | Lead Time: | 45 Days After Deposit |
| Barrel Diameter: | 63mm | Screw & Barrel Material: | W6Mo5Cr4V2 |
| Motor: | 75kw | Capacity: | 200-350kg/h |

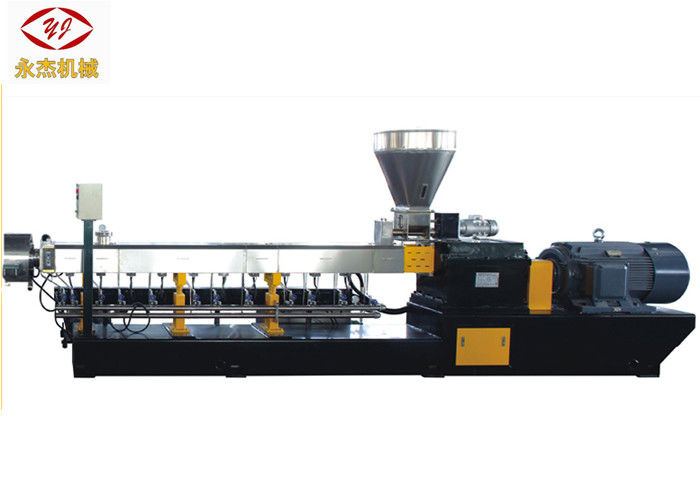

SJSL65A Black Masterbatch Extrusion Machine Water Ring Pelletizer Plastic Extruder
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Screw diameter:62.4mm
Screw material:W6Mo5Cr4V2
Barrel diameter:63mm
Barrel material:W6Mo5Cr4V2
Motor power:75kw
Motor brand:SIEMENS
L/D:48:1
Output:200-250kg/h
Work condition (provided by customer)
| Warehouse/Workshop | Dimension (M*M*M): 20 (Length)×3 (width) ×2.5 (Height) |
| Temperature | ≤40℃ |
| Power supply & Installation power | 3-phase, 380V, 50Hz |
| Wire/cables | Wires/cables from power supply to control cabinet of this production line; |
| Cooling Water hose/pipe | Water supply to machines and pools. Creating a pool (4-6m3) outside the workshop, using water pump to make recycling water. |
| Weight | Extruder: ~2.5T, sub-machine: ~1T |
Main parts and technical parameters
| No. | Contents | Unit | Quantity | Marks |
| 1 | 200L high speed mixer | set | 1 | |
| 2 | Twin screw extrusion system | set | 1 | |
| 2.1 | Feeding system | set | 1 | 1.1kw |
| 2.2 | SJ-51 Twin screw extruder | set | 1 | 75kw, 48:1 |
| 2.3 | Vacuum venting system | set | 1 | 2.2kw |
| 2.4 | Water cycling system | set | 1 | 0.55kw |
| 2.5 | Automatic screen changer | set | 1 | 1.5kw |
| 3 | Electric cabinet | set | 1 | |
| 4 | Water-ring auxiliary system | set | 1 | |
| 4.1 | Water-ring die head | set | 1 | |
| 4.2 | Face cutter with guide rail & cover | set | 1 | 1.5KW |
| 4.3 | Centrifugal dehydrator | set | 1 | 4KW |
| 4.4 | Vibrating sieve | set | 1 | 0.4KW |
| 4.5 | Storage bin | set | 1 | |
| 5 | Documents | set | 1 |
Main Technical Details of Various Water Ring Pelletizer Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
