Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission

China Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission supplier
Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission supplier Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission supplier Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission supplier

Large Image :  Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL95A

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: Pvc Cable Raw Material
Warranty: One Year Overseas Engineers: Available For Installation And Comissioning
Screw Diameter: 92mm Motor: 280kw
Capacity: 800-1000kg/h Air Transmission: Three Stages

SJSL95A Twin Screw PVC Pellets Screw & Barrel Extruder Machine PVC Pelletizing Machine


Quick details
Power:280kw
Screw diameter:92mm

Barrel diameter:93mm
Output:800-1000kg/h
Cutting way: air cooling die face for cable material
Warranty:one year
Lead time:45 days after deposit

Heating power:100kw

Heating zones: 9 zones



Scope of supply



No. Contents Unit Quantity Marks
1 High speed mixer set 1 800L
2 Screw feeder machine set 1 2.2kw
3 Twin screw extrusion system set 1
3.1 Feeding system set 1 2.2kw
3.2 SJ-95Twin screw extruder set 1 280kw, 48:1
3.3 Vacuum venting system set 1 4kw
3.4 Water cycling system set 1 1.5kw
3.5 Automatic screen changer set 1 2.2kw
4 Electric cabinet set 1
5 Air-cooling auxiliary system set 1
5.1 Die head set 1
5.2 Face cutter set 1 2.2kw
5.3 Two-stage conveying system set 1 15kw
5.4 Vibrator set 1 0.37kw
5.5 Product silo set 1 7.5kw
6 Documents set 1


World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.


Pre-sales service
♦1. Inquiry and consulting support.

♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.

♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.

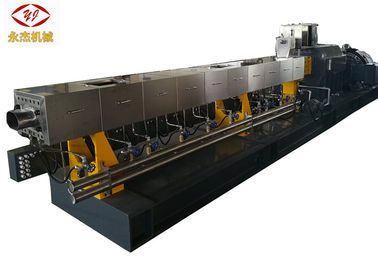

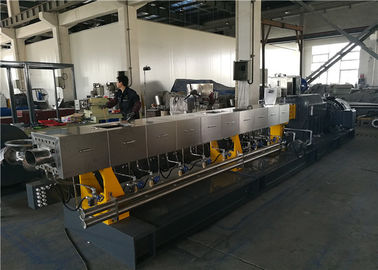

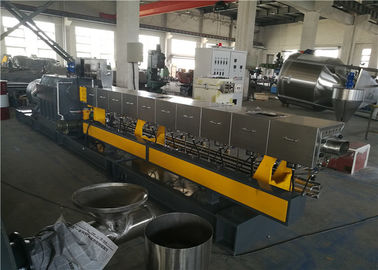

Photo of SJSL95A
Screw & Barrel Extruder PVC Pelletizing Machine Three Stages Air Transmission

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500


Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
