|Screw Design:||Twin Screw Extruder||Application:||PE PP PVC WPC Plastic Pellets|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
PE PP PVC WPC Air Cooling Twin Screw Extruder Machine WPC Extruder
Power:90kw option according to required output
Screw material: W6Mo5Cr4V2 (6542＃) high speed tool steel
Barrel diameter: 63mm
Barrel material:45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside
Output:200-450kg/h according to different material, formula and technology of process etc.
Cutting way: air cooling die face plastic pellet machine is used for wpc plastic pellet
Lead time:45 days after deposit
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.
Scope of supply
|1||High speed mixer||set||1||300L|
|2||Screw feeder machine||set||1||1.5kw|
|3||Twin screw extrusion system||set||1|
|3.2||SJ-65 Twin screw extruder||set||1||90kw, 48:1|
|3.3||Vacuum venting system||set||1||2.2kw|
|3.4||Water cycling system||set||1||0.55kw|
|3.5||Automatic screen changer||set||1||1.5kw|
|5||Air-cooling auxiliary system||set||1|
|5.3||One-stage conveying system||set||1||4kw|

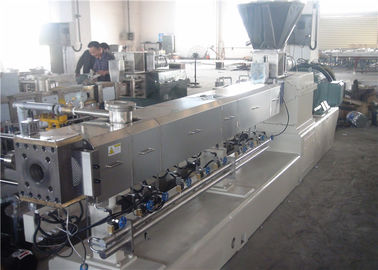

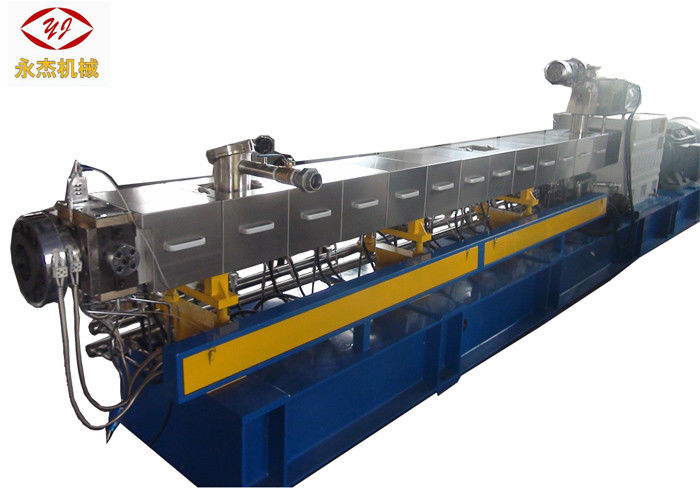

Photo of Wood Plastic Composite WPC Extruder Air Cooling Plastic Pellet Machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
