Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Single Screw Extruder | Application: | PE PP PVC PA Recycling Material Etc |
|---|---|---|---|
| Cutting Way: | Water Ring Die Face | Screw Diameter: | 60mm |
| Motor: | 22kw | Capacity: | 50-70kg Per Hour |
| Material: | 38CrMoAIA | Central Height Of Screw: | 900 Mm |
30-50kg/h YD60 Plastic Recycling Granulator Machine Single Screw Extruder Machine
Characteristic of Yongjie single screw extruder
1. High precision gear box with ability of over loading, smooth transmitting, lower noise
2. Newly designed barrel and screw to ensure well-distributed of material in melting, low melt temperature and high production
3. The screw is made with standard and high precision during process. After treated by gases and nitride the barrel, it possesses strong wear- and corrosion- resisting. For special material, double metals are available for barrel etc.
4. The barrels cooled by lower with super mute working status, less maintenance
5. PID temperature is controlled by Japan temperature control meter with stable and accurate temperature.
6. Two type of die head design: manual and hydraulic type for easy changing and time saving.
7. ABB or other famous brand Inverter speed control for more stable and good performance of machine and easier operation
Typical Application
Working for plastic raw material dye, recycling plastic pellets from film, flake, scrap and engineering plastics, such as ABS, PC, POM, PP, PE, ABS/PC, PET etc.
Main technical parameter of YD-60 production line
d. Barrel material: 38CrMoALA;
Pre-sales service
♦ 1. Inquiry and consulting support.♦
2. Selecting economical and suitable extruder and related machines for customers.
♦ 3. Providing technical details of machine.
♦ 4. Providing means of trial performance for customer.
♦ 5. Factory tour & assistance of invitation letter when needed.
Sales service
♦ 1. Recommending engineering conditions required for installation.
♦ 2. Communicating on time the manufacturing status of machines.
After-sales service
♦ 1. Engineers available to service machinery overseas in installation, commissioning and training.
♦ 2. Filing in detail customer’s order information.
♦ 3. Providing long-term maintenance service and spare parts.
♦ 4. Giving technical support to customer for developing new product.
♦ 5. Providing free maintenance for a year.

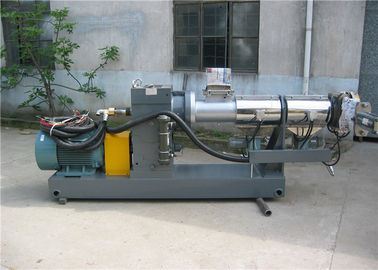

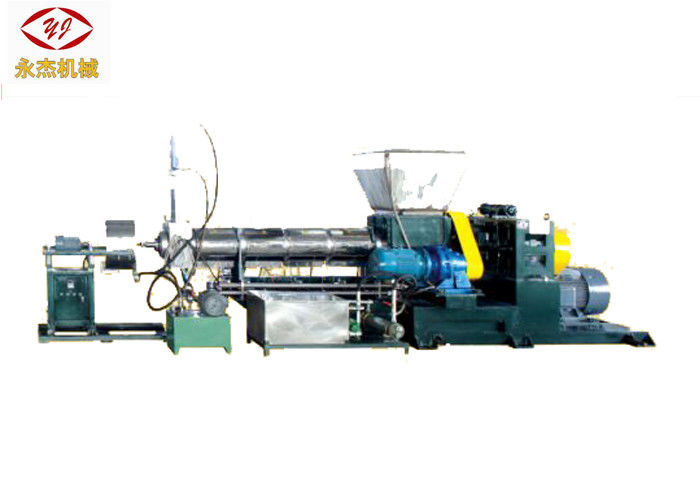

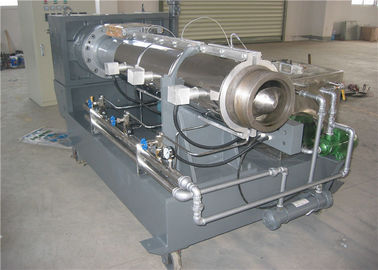

Photo of single screw extruder plastic pellet mahcine
Main technical data of various model of single screw extruder palstic pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | Main motor power(Kw) | screw speed n(r/min) | Typical production capacity (kg/h) |
| YD-30 | 30 | 25-33 | 4/5.5 | 3-100 | 2-15 |
| YD-45 | 45 | 20-32 | 5.5/7.5 | 5-84 | 5-40 |
| YD-60 | 60 | 20-32 | 17.5/22 | 5-84 | 15-80 |
| YD-90 | 90 | 20-33 | 30/37 | 5-84 | 25-120 |
| YD-100 | 100 | 20-33 | 37/45 | 5-84 | 45-150 |
| YD-120 | 120 | 20-33 | 45/55 | 5-84 | 75-200 |
| YD-150 | 150 | 20-33 | 75/90 | 5-84 | 150-300 |
| YD-180 | 180 | 20-33 | 90/132 | 5-84 | 200-400 |
| YD-200 | 200 | 20-33 | 110/160 | 5-84 | 250-500 |
