|Screw Design:||Twin Screw Extruder||Application:||Pvc, Abs, Pe, Pp Etc Formula Tesitng|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
|Capacity:||2-15kg/h||Cutting Way:||Water Strand|
SJSL20 Laboratory Extruder PVC Pelletizing Machine Extruder Machine PVC
Cutting way: water strand, air cooling strand also available
Lead time:45 days after deposit
Heating zones: 7zones
Control type:Both PID and PLC are available
Scope of supply
|1||Twin screw extrusion system||set||1|
|1.2||SJ-20 Twin screw extruder||set||1||5.5kw, 40:1|
|1.3||Vacuum venting system||set||1||0.75kw|
|1.4||Water cycling system||set||1||0.55kw|
|1.5||Manual screen changer||set||1|
|3||Water stand auxiliary system||set||1|
|3.2||Water trough||set||1||1 M|
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.

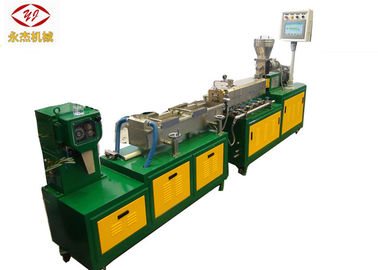

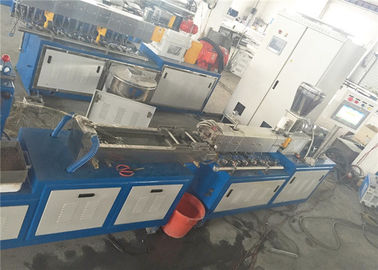

Photo of SJSL20 Laboratory Extruder PVC Pelletizing Machine Extruder Machine PVC
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
