|Screw Design:||Twi-single Screw Extruder||Application:||Carbon Black Master Batch|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
|Capacity:||500-700kg/h||Cutting Way:||Air Cooling Die Face|

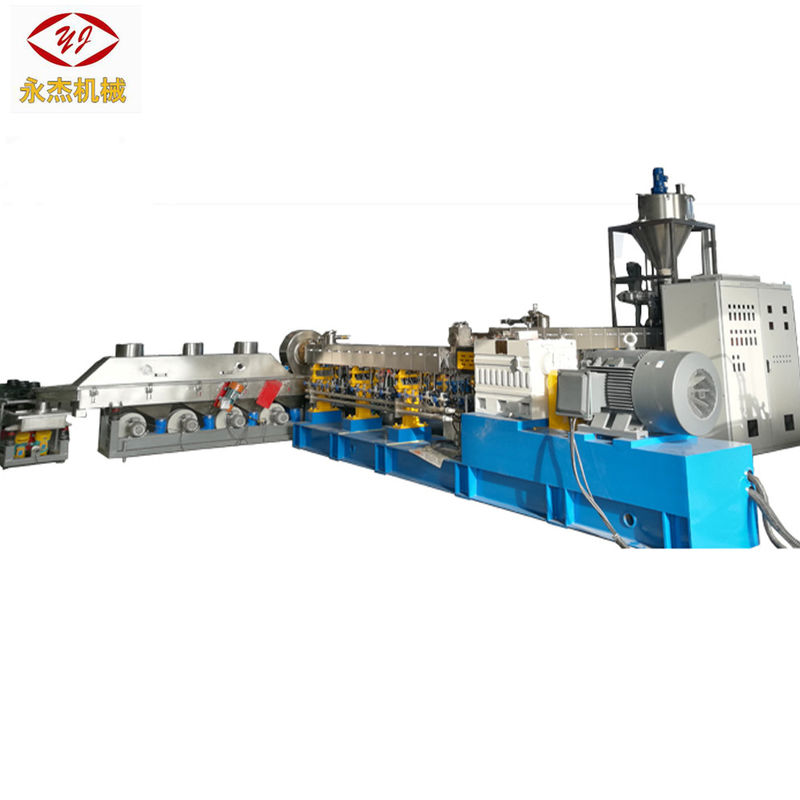

Carbon Black Masterbatch Manufacturing Machine Plastic Pelletizing Machine
Power:132kw for twin screw exturder, 55kw for single screw extruder
Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine
L/D:48:1 & 9:1
Output:500-700kg/h according to different material, formula and technology of process etc.
Cutting way:water ring
Lead time:45 days after deposit
Technical parameter of carbon black plastic granulating production line
Dynamic data: low voltage power supply standard(DIN/IEC38): 380ｖ-5+10%, 50Hz-/+2% phase/N/PE50Hz.
control voltage standard (transformed): 220V AC( contactor, meter, electromagnetic valve ).
Temperature: 10-40℃.Humidity: max.80%, no condensation.
Total wattage:～300 KW.
Water requirements: circulating water: The cooling recycling water in the barrel must be non-inoic soft water (distilled water).
Water sources: 1. Creating a pool (4-6㎥) outside the workshop, using water pump to make recycling water.
2. Using tap water directly, but it’s wasteful.
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

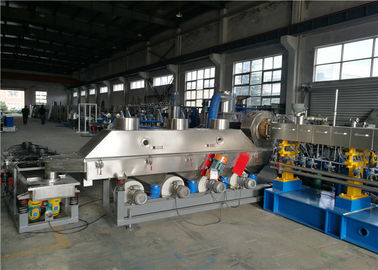

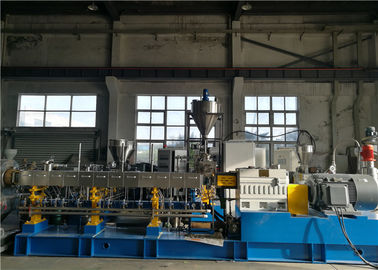

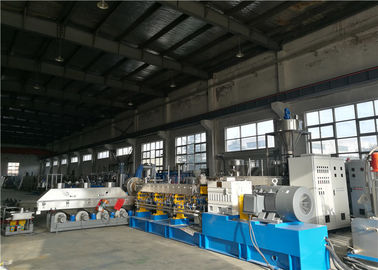

Photo of two stage cable material plastic pelletizing machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
