Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | PP PE With Caco3, Talc Etc Filler Masterbatch |
|---|---|---|---|
| Warranty: | One Year | Dryer: | 0.26kw |
| L/D: | 44:1 | Screw & Barrel Material: | W6Mo5Cr4V2 |
| Motor: | 18.5kw | Capacity: | 30-150kg/h |
SJSL36 High Filler Masterbatch Machine Water Ring Twin Screw Pelletizing Machine
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Model number:SJSL36B
Screw diameter:35.6mm
Screw material:W6Mo5Cr4V2
Barrel diameter:36mm
Barrel material:W6Mo5Cr4V2
Motor power:18.5kw
Motor brand:SIEMENS
L/D:44:1
Output:30-100kg/h
technical requirements:
Dynamic data: low voltage power supply standard(DIN/IEC38): 380ｖ -5+10%, 50Hz-/+2% phase/N/PE 50Hz.
control voltage standard (transformed): 220V AC( contactor, meter, electromagnetic valve ). Temperature: 10-40℃.
Humidity: max.80%, no condensation.
Total wattage:～50 kw.
Water requirements: circulating water: The cooling recycling water in the barrel must be soft water (distilled water).
Water sources: 1. Creating a pool (4-6 ㎥) outside theworkshop, using water pump to make recycling water.
2. Using tap water directly, but it’s wasteful.
Weight :Extruder:~2T Auxiliary system:~1T
Reminder:Please reading production specification before open the equipment.

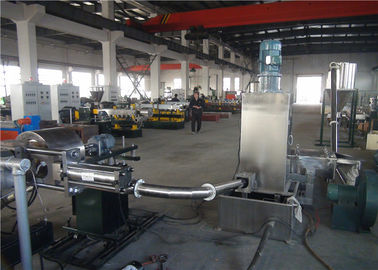

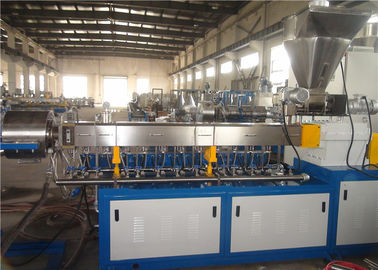

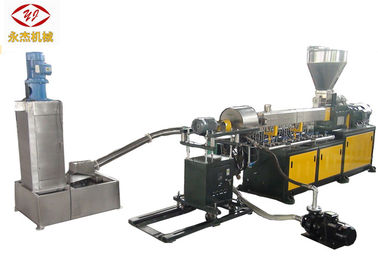

Photo of SJSL36 Water Ring Filler Masterbatch Machine
Free spare parts:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Screw elements | set | ~100mm | |
| 2 | Output and input shaft oil seals | piece | 3 | |
| 3 | Venting room seal ring | piece | 1 | |
| 4 | Asbestos gloves | pairs | 2 | |
| 5 | Allen key (inner) | set | 1 | 5 pieces |
| 6 | Allen key (outer) | set | 1 | 3 pieces |
| 7 | Flat, Cross Screw driver | piece | 1 each | 2 pieces |
| 8 | Copper bar ∮32*200 | piece | 1 | |
| 9 | Screw hoisting ring | piece | 2 | |
| 10 | Cutter | piece | 30 |
Main Technical Details of Various Water Ring Pelletizer Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
