75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder

China 75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder supplier
75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder supplier 75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder supplier 75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder supplier

Large Image :  75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL65A

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Application: PE PP ABS PET Etc
Warranty: One Year Gearbox Reduction Ratio: 3:1
Barrel Diameter: 71.8mm Motor: 75kw
Capacity: 200-450kg/h Water Tank: 4000mm

75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder


Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.


Quick details



Screw speed:0-600rpm, speed ratio:3:1

Screw diameter:¢62.4mm

Direction of rotation: Co-rotating

Screw&elements: W6Mo5Cr4V2(6542) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.

Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.

Barrel diameter: ¢63mm

2). Structure: The first section works for main feeding, the fifth section is set up for venting naturally, and the Ninth section is set up for vacuum venting and others are blocked.

3). Material: The material of the barrel is made of 38CrMoAl nitriding steel.

4). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 60kw and the max heating capacity every section can reach 500℃.

5). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.

The brand of electromagnetic valve is DANFOSS.

6) Length:290*10=2900mm


Pre-sales service
♦1. Inquiry and consulting support.

♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.

♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.

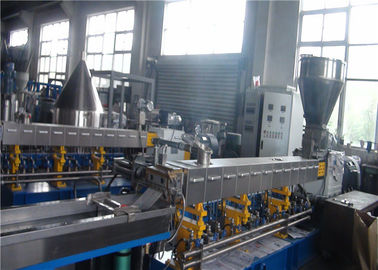

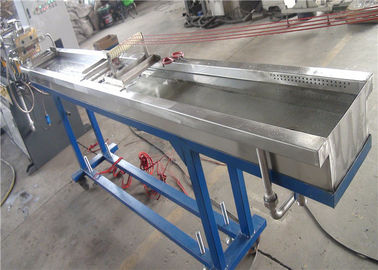

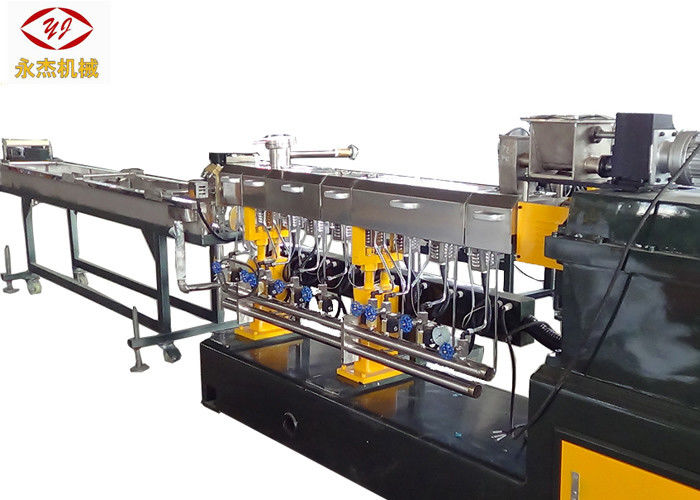

Photos of Water Strand Plastic Pelletizing Machine

75kw PE PP ABS Master Batch Manufacturing Machine Twin Screw Extruder


Free spare parts:

No. Contents Unit Quantity Marks
1 Screw elements set ~300mm
2 Output and input shaft oil seals piece 3
3 Venting room seal ring piece 1
4 Asbestos gloves pairs 2
5 Allen key (inner) set 1 5 pieces
6 Allen key (outer) set 1 3 pieces
7 Cross, Flat screw driver piece 1 each 2 pieces
8 Screw hoisting ring piece 2

















Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500
